91A1A-B24-B13L

BOURNS  91A1A-B24-B13L  电位器, 面板控制, 5千欧-2欧姆 20 % 0.5W 500V 单转

Construction features include a one-piece molded shaft and rotor. The one-piece rotor shaft provides virtually infinite electrical circuit isolation. Conductive plastic element.

.

*Operating Temperature Range:** –40°C to +125°C. **Temperature Coefficient:** 1000 ppm/°C. **Infinite Resolution:** Single turn. **Load Life:** 1000 hrs. **Dielectric Withstanding Voltage:** 1500 VAC @ sea level.

欧时:
Potentiometer, 0.5 Watt, 20%, 5K

艾睿:

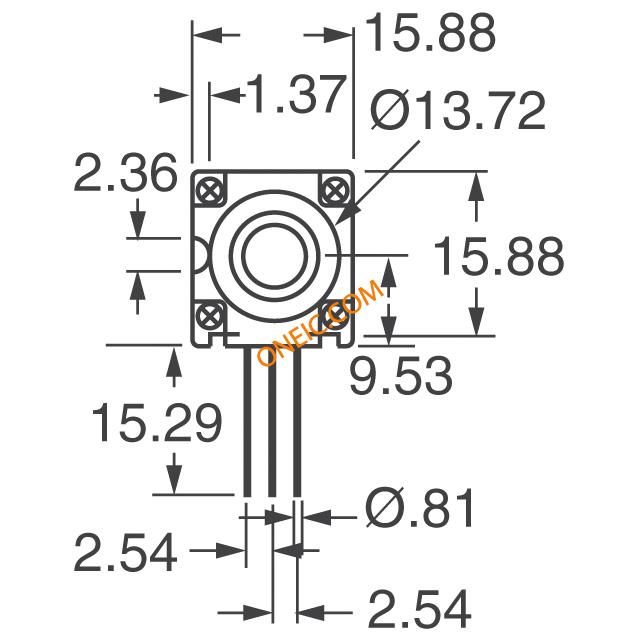

Apply this 91A1A-B24-B13L potentiometer from Bourns to infrequently adjust the resistance value for your circuit. This dependable part has a power rating of 1 W. This product has a resistance value of 5K Ohm. Its temperature coefficient is ±1000 ppm/°C. This device is made with conductive plastic technology. The 91A1A-B24-B13L part has a pin termination style. This part has an operating temperature of -40 to 125 °C. It has a tolerance of 20%. This product is 31.75 mm long, 17.46 mm tall and 15.88 mm deep.

Allied Electronics:
Potentiometer, Conductive Plastic, .5 Watt, 20%, 5K

Chip1Stop:
Res Conductive Plastic POT 5K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole

TME:
Potentiometer: shaft; single turn; 5kΩ; 1W; ±20%; 6.35mm; linear

Verical:
Res Conductive Plastic POT 5K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole

Newark:
# BOURNS  91A1A-B24-B13L  Rotary Potentiometer, Conductive Plastic, 5 kohm, 500 mW, ± 20%, 91 Series, 1 Turns, Linear

MASTER:
Res Conductive Plastic POT 5K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole

Online Components:
Res Conductive Plastic POT 5K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole

Electro Sonic:
Res Conductive Plastic POT 5K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole
