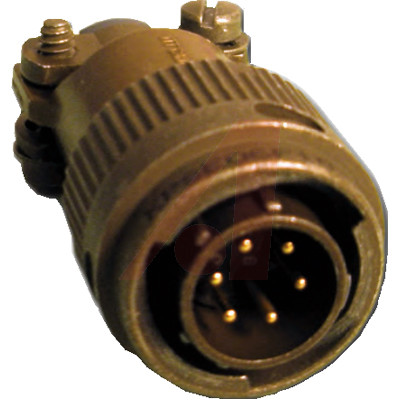

MS3126F14-19P

ITT CANNON  MS3126F14-19P  圆形连接器, MIL-DTL-26482 I系列, 直型插头, 19 触点, 压接引脚, 卡口, 14-19

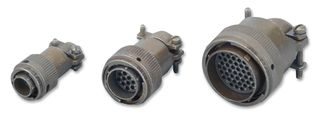

The from is MIL-DTL-26482 series I straight plug with 19 contacts. MIL-DTL-26482 series I connectors are available in various shell styles and shell plating with 48hr, 500hr salt spray exposure. The unmated connectors and protective covers meet 48hrs exposure to MIL-STD-1344 method 1001 per MIL-DTL-26482. It has a well-proven electrical capability and is designed to withstand extreme shock, exposure and vibration.

.

Intermateable, intermountable, interchangeable for MIL-C-26482, VG95328 connectors

.

Self levelling 3 point bayonet coupling assures fast and reliable mating / unmating

.

Precise alignment utilizing five keyways

.

High contact density, environmentally sealed & suitable for harsh environments

.

Operating temperature range from -55°C to +125°C

.

Insulation resistance is 5000Mohm at 25°C

.

500 mating cycles, operating voltage is 1000VAC

.

Resilient polychlorprene insulator & grommet

.

Aluminium alloy body material with olive drab chromate over cadmium plating

.

Copper alloy crimp pin contacts with gold plating
