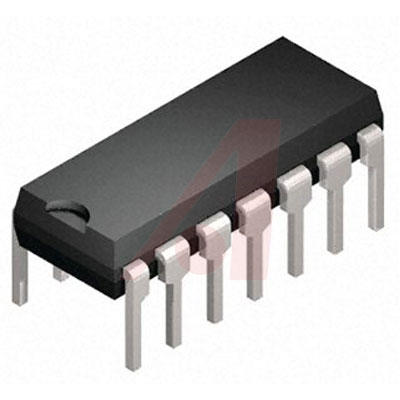

DG303BDJ-E3

VISHAY  DG303BDJ-E3  模拟开关, 双通道, SPDT, 2 放大器, 50 ohm, ± 15V, DIP, 14 引脚

The is a single-pole double-throw monolithic CMOS Switch for precision applications where low leakage switching combined with low power consumption are required. Designed on the CMOS process, this switch is latch-up proof and is designed to block up to 30V peak-to-peak when OFF. In the ON condition the switch conducts equally well in both directions and minimize error conditions with their low ON-resistance. This switch is ideal for battery powered applications without sacrificing switching speed. Designed for break-before-make switching action, this device is CMOS and quasi TTL compatible.

.

An epitaxial layer prevents latch-up

.

Single supply operation

.

Full rail-to-rail analogue signal range

.

Low signal error

.

Low power dissipation
