电压检测器系列具有可编程延迟 Voltage Detector Series with Programmable Delay
Make sure the components in your circuit are protected from unwanted voltage spikes by using this voltage detector voltage monitor IC from . This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a typical reset threshold voltage of 1.5 V, with a minimum of 1.47 V and a maximum of 1.53 V. This voltage supervisor IC has an operating temperature range of -40 °C to 125 °C. This device has a minimum operating supply voltage of 0.8 V and a maximum of 10 V.
电源电压DC 800mV min
无卤素状态 Halogen Free
供电电流 450 nA
阈值电压 1.5 V
复位电压Min 1.47 V
复位电压Max 1.53 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 2 %
电源电压Max 10 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 5

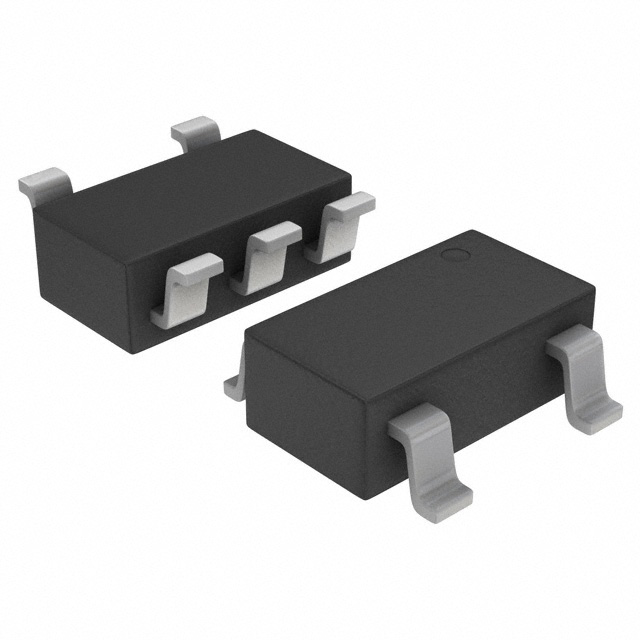

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Powertrain, Infotainment, Instrument Cluster, Nagivator, Battery Backup Detection, Braking, Body Electronic, Microprocessor Reset Controller, Low Battery Detection, Occupant Protection, Occupant Comfort, Power Fail Indicator
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
NCP303LSN15T1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
NCP303LSN15T1 安森美 | 完全替代 | NCP303LSN15T1G和NCP303LSN15T1的区别 |
