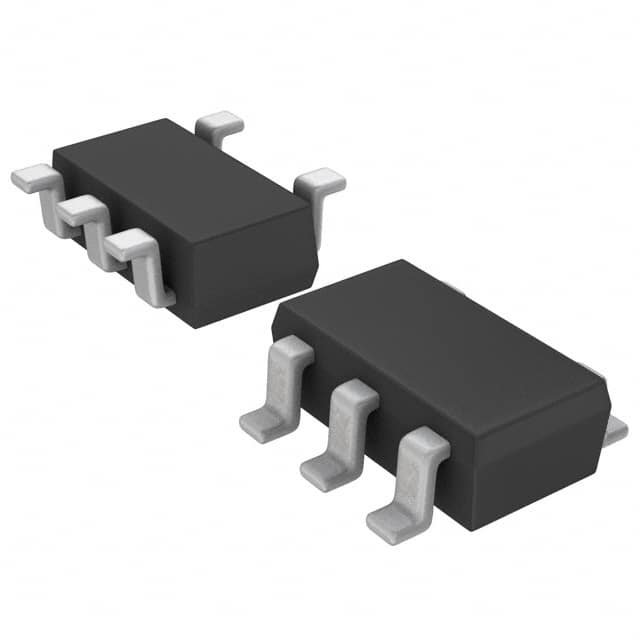

ROHM QS5K2TR 双路场效应管, MOSFET, 双N沟道, 2 A, 30 V, 154 mohm, 4.5 V, 1.5 V
The is a dual N-channel Complex MOSFET designed as low ON-resistance devices by the micro-processing technologies useful for wide range of applications. It is designed for coin processing machines, portable data terminal, handy and bench type digital multi-meter, PLC, DVR/DVS, POS, electric bike, smart meter, surveillance camera, X-ray inspection machine for security, surveillance camera for network, intercom/baby monitor, fingerprint authentication device, machine vision camera for industrial and display for EMS applications.
- .
- Low ON-resistance
- .
- Space saving, small surface-mount package
- .
- Fast switching speed
额定电压DC 30.0 V
额定电流 2.00 A
针脚数 5
漏源极电阻 0.154 Ω
极性 Dual N-Channel
耗散功率 1.25 W
阈值电压 1.5 V
输入电容 175 pF
栅电荷 3.90 nC
漏源极电压Vds 30 V
漏源击穿电压 30.0 V
连续漏极电流Ids 2.00 A
上升时间 10 ns
输入电容Ciss 175pF @10VVds
额定功率Max 1.25 W
下降时间 8 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1250 mW
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 0.95 mm
封装 TSOT-23-5
材质 Silicon
工作温度 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, Alternative Energy, Industrial, 电源管理, Embedded Design & Development, Power Management, Motor Drive & Control, 电机驱动与控制, 替代能源, 嵌入式设计与开发
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
