N2550-6V0C-RB-WG

HE10 SMT sockets - N25xx SeriesHigh-temp insulation in accordance with JEDEC J-STD-020C requirements: withstands remelt temperatures and lead-free processes up to 260°C. Packaged as slotted rolls. The connectors feature a pick-up hood in high-temp resistant material. The roll is composed of black ESD conductive material with a 24 mm pitch. Contacts are visible, for inspection after soldering. The connector body does not mask the contacts, as when using straight through-hole connectors ### 标准UL No.: E68080, JEDEC J-STD-020C.### 管座，插头和插座 - 3M

HE10 表面安装插座 - N25xx 系列

按照 JEDEC J-STD-020C 要求进行高温绝缘处理：可耐受再熔化温度和高达 260°C 的无铅处理温度。

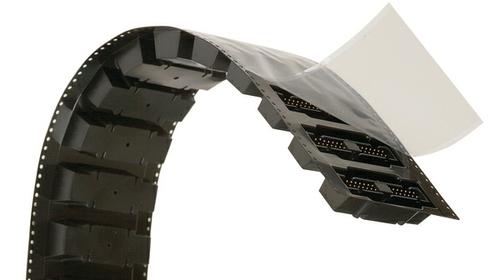

采用一字卷封装形式。具有采用耐高温材料制成的拾取护罩。每卷包含具有 24 mm 节距的黑色 ESD 导电材料。

触点焊接后可以看到，便于检查。连接器主体不会遮盖触点，就像使用直通孔型连接器那样。

### 标准

UL 编号：E68080，JEDEC J-STD-020C。

得捷:

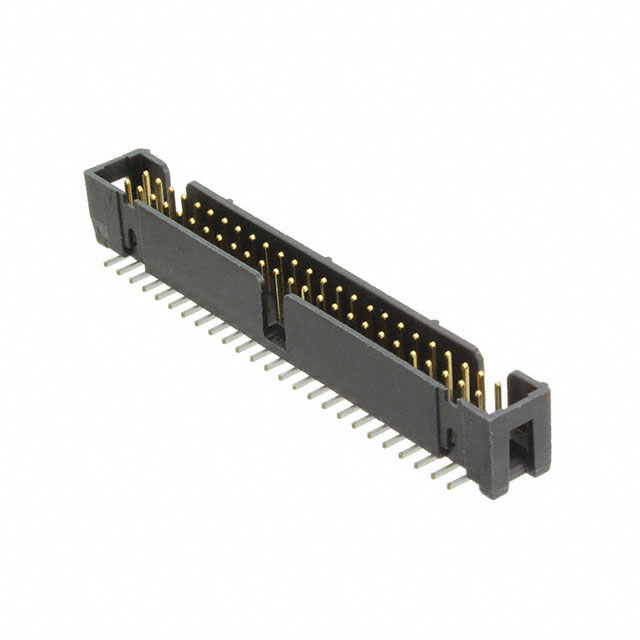

CONN HEADER SMD 50POS 2.54MM

欧时:
3M PCB 针座 2500 系列 50路 2.54mm节距 2排 直向 N2550-6V0C-RB-WG, 焊接端接, 2A, 表面安装

贸泽:
Headers & Wire Housings MOLDED PICK CAP 50 PIN 30u GOLD

艾睿:
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST SMD Box

Allied Electronics:
2500 Series Low Profile SMT 4 wall Header, Straight, .100 X .100 50 position

安富利:
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST SMD T/R

Chip1Stop:
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST SMD T/R

Verical:
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST SMD Box
