N3408-6303RB

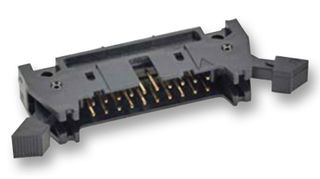

N3408-6303RB图片1

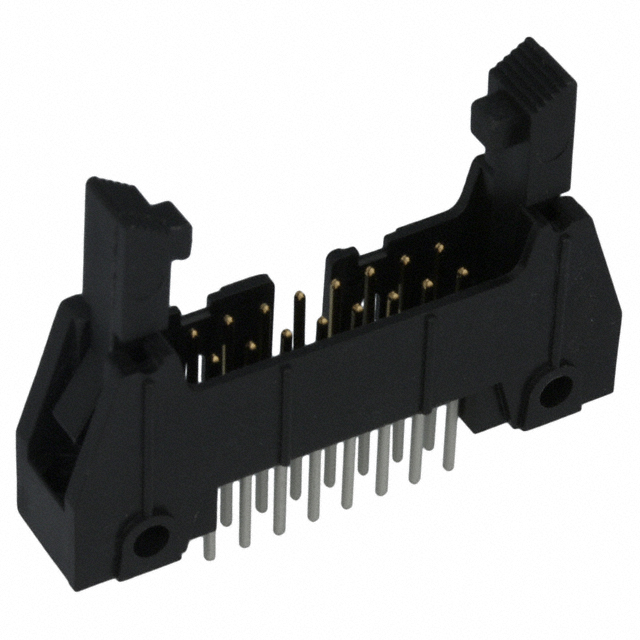

N3408-6303RB图片2
N3408-6303RB图片3
N3408-6303RB图片4
N3408-6303RB图片5
N3408-6303RB图片6
N3408-6303RB概述

3M  N3408-6303RB  线至板连接器, 长锁定, 3000系列, 16 触点, 针座, 2.54 mm, 通孔安装, 2 排

Military with "s N3518 polarizing key and center bump polarizationLow profileOptional ejector latchesMounting holes for securing header to boardThree wall shroud provides design flexibilitySolder tail and wrap tail optionsOptional polarizing posts availableHigh temperature insulator suitable for "no lead" soldering operationsSuitable for reflow soldering using "paste in hole" techniquesSee Regulatory Information Appendix link for chemical compliance informationFor more information, refer to Data Sheet TS0771 TS-0771.100” x .100” Latch/Ejector, Straight and Right Angle

N3408-6303RB中文资料参数规格
技术参数

触点数 16

极性 Male

触点电镀 Gold

额定电流 1.75 A

绝缘电阻 1.00 GΩ

排数 2

易燃性等级 UL 94 V-0

针脚数 16

额定电流Max 1.75 A

封装参数

安装方式 Through Hole

引脚间距 2.54 mm

外形尺寸

长度 39.75 mm

宽度 8.6 mm

高度 27.2 mm

引脚间距 2.54 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Copper

工作温度 -55℃ ~ 105℃

外壳材质 Polyester

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Aerospace, Defence, Military, 国防, -, 军用与航空

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

军工级 Yes

REACH SVHC版本 2014/06/16

海关信息

ECCN代码 EAR99

数据手册

在线购买N3408-6303RB
型号: N3408-6303RB
制造商: 3M
描述:3M  N3408-6303RB  线至板连接器, 长锁定, 3000系列, 16 触点, 针座, 2.54 mm, 通孔安装, 2 排
替代型号N3408-6303RB
型号/品牌 代替类型 替代型号对比

N3408-6303RB

3M

当前型号

当前型号

N3408-6003RB

3M

完全替代

N3408-6303RB和N3408-6003RB的区别

3408-6603

3M

完全替代

N3408-6303RB和3408-6603的区别

5499206-3

泰科

功能相似

N3408-6303RB和5499206-3的区别
