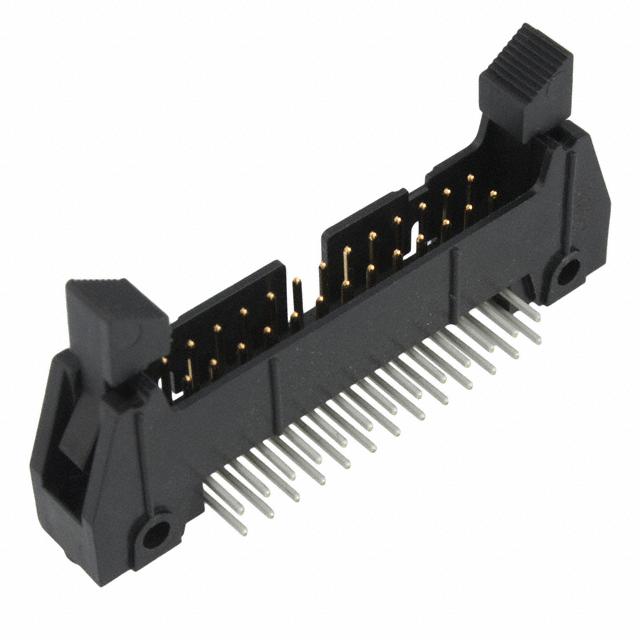

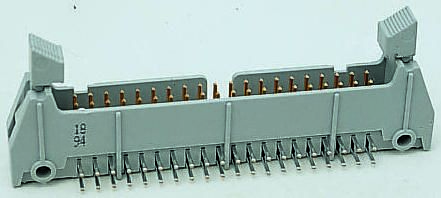

N3429-5202RB

3M  N3429-5202RB  线至板连接器, 锁定式, 3000系列, 26 触点, 针座, 2.54 mm, 通孔安装, 2 排

HE 10 斜角焊接，带短锁

转换连接器配有长锁/弹出器，设计用于锁定 HE 10 母连接器，不带应力消除附件。

得捷:
CONN HEADER R/A 26POS 2.54MM

欧时:
3M PCB 针座 3000 系列 26路 2.54mm节距 2排 直角 N3429-5202RB, 焊接端接, 2A, 通孔

贸泽:
集管和线壳 26P R/A SHORT PIN SOLDER TAIL 30u GOLD

e络盟:
3M  N3429-5202RB  线至板连接器, 锁定式, 3000系列, 26 触点, 针座, 2.54 mm, 通孔安装, 2 排

艾睿:
Thanks to 3M&s;s ejector N3429-5202RB header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 26 contacts that are made out of copper alloy and plated with gold over nickel. It has a right angle body orientation. This is a 2-row connector. Its pitch is 2.54 mm. It has a header type gender. This device has a maximum current rating of 1.75 A. This connector has an operating temperature of -55 to 105 °C. N3429-5202RB is housed in black polychlorinated terphenyl. This product is 52.45 mm long, 8.6 mm tall and 24.6 mm deep. It uses the solder termination method.

安富利:
Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole

Chip1Stop:
Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Ejector Header HDR 26 POS 2.54mm Solder RA Side Entry Thru-Hole Box

Newark:
# 3M  N3429-5202RB  Wire-To-Board Connector, 2.54 mm, 26 Contacts, Header, 3000 Series, Through Hole, 2 Rows
