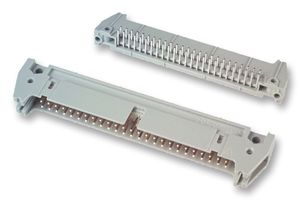

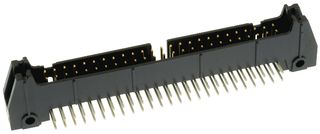

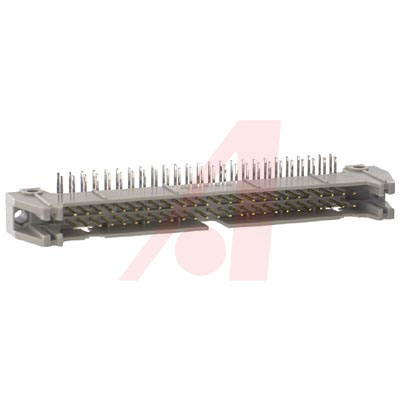

3M N3433-5002RB Wire-To-Board Connector, Right Angle, 2.54mm, 50Contacts, Header, Through Hole, 2Rows
The 3000 series Four-wall Header with copper alloy contacts and a glass-filled polycyclohexylenedimethylene terephthalate insulator. The high temperature insulator suitable for no lead soldering operations. It is suitable for reflow soldering using paste in hole techniques.
- .
- Standard ejector latches
- .
- Mounting holes for securing header to board
- .
- Optional polarizing posts
- .
- >1 x 10⁹R at 500VDC Insulation resistance
触点数 50
极性 Male
触点电镀 Gold
额定电流 1.75 A
绝缘电阻 1000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 50
额定电流Max 1.75 A
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚间距 2.54 mm
长度 82.9 mm
宽度 17.3 mm
高度 8.6 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
绝缘材质 Polyester
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Box
制造应用 -, Defence, Military & Aerospace, Aerospace, Defence, Military
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
N3433-5002RB 3M | 当前型号 | 当前型号 |
N3433-5602 3M | 完全替代 | N3433-5002RB和N3433-5602的区别 |
3433-5002UG 3M | 完全替代 | N3433-5002RB和3433-5002UG的区别 |
3433-5502 3M | 完全替代 | N3433-5002RB和3433-5502的区别 |
