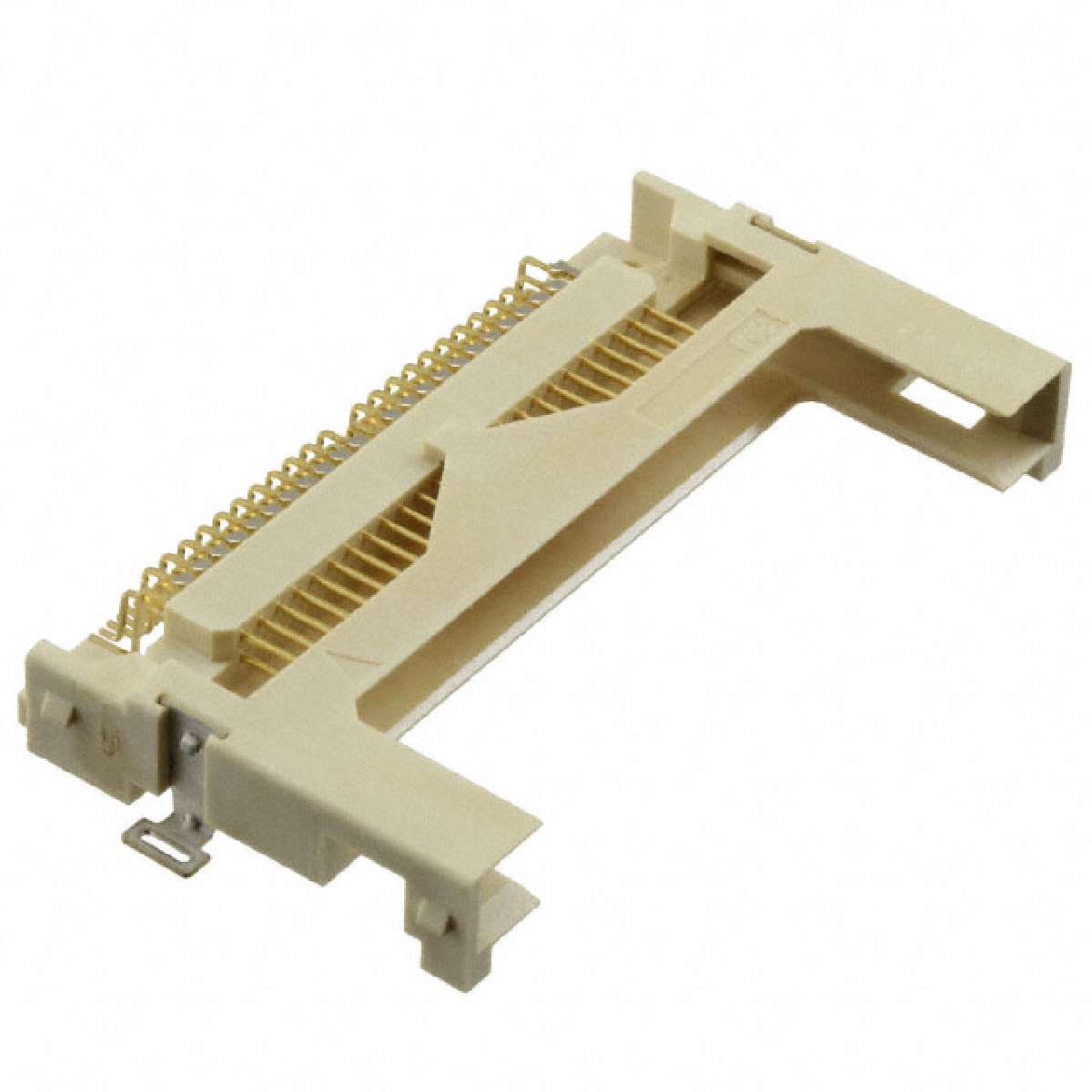

N7E50-7516PK-20

3M  N7E50-7516PK-20  线至板连接器, PC卡, 7E+50系列, 50 触点, 针座, 0.635 mm, 焊接, 2 排

Compact Flash ™ 插座和导向件

插座适用于 Compact Flash 格式存储板，即：比 PCMCIA 板要小四倍

提供的导柱使插入和拔取电板更加容易，与 PCMCIA 管座操作一样

从电气角度来看，插座完全与 PCMCIA 标准兼容

### 注

闪存板尺寸 mm：36 x 43 x 3.3

得捷:
CONN COMPACT FLASH CARD R/A SMD

欧时:
3M 0.635mm节距 50针2行 直角 公 SMT CF 卡 存储卡连接器 N7E50-7516PK-20, 焊接端接

贸泽:
Memory Card Connectors 50P SURFACE MOUNT

e络盟:
线至板连接器, PC卡, 7E+50系列, 50 触点, 针座, 0.635 mm, 焊接, 2 排

艾睿:
Do you want a memory card connection to your circuit? This compact flash card N7E50-7516PK-20 micro SD connector from 3M is a must! This HDR connector&s;s 50 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel. This is a 2-row connector. Its pitch is 0.635 mm. It has a right angle body orientation. It has a header type gender. N7E50-7516PK-20 is housed in liquid crystal polyester. This device has a maximum current rating of 0.5 A. It uses the solder termination method. This product is 50.6 mm long, 6.64 mm tall and 26.5 mm deep. This power entry module has an operating temperature of -55 to 85 °C.

Allied Electronics:
Connector COMPACT FLASH CARD R/A SMD

Newark:
# 3M  N7E50-7516PK-20  Wire-To-Board Connector, PC Card, 7E50 Series, Solder, Header, 50, 0.635 mm, Gold Plated Contacts
