NC6-P107-02

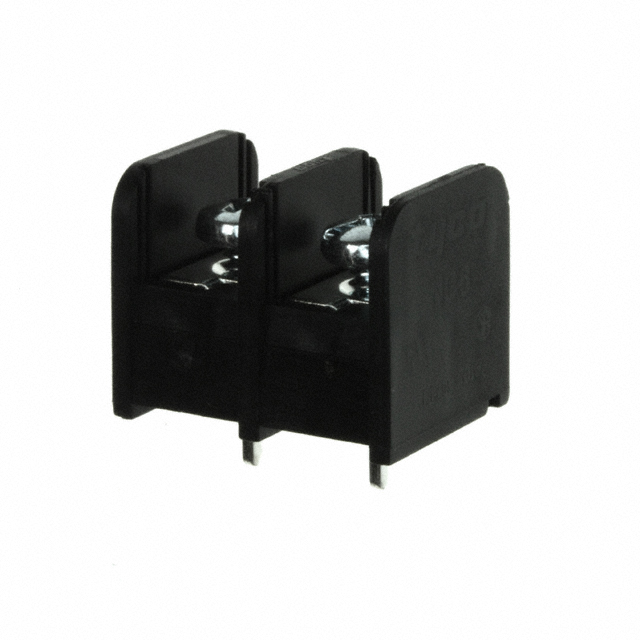

TE CONNECTIVITY / BUCHANAN  NC6-P107-02  接线条, 带隔板, 9.53MM, 2路

2 电路 0.375"（9.53mm） 隔板接线座 螺钉

得捷:
CONN BARRIER STRIP 2CIRC 0.375"

e络盟:
接线条, 带隔板, 9.53MM, 2路

艾睿:

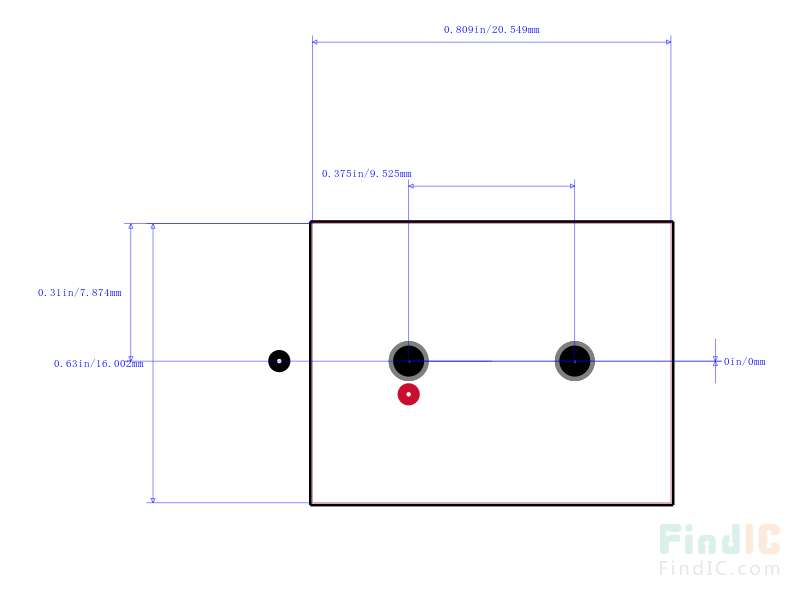

Create a bridge between two sides of a circuit by implementing this barrier strip NC6-P107-02 PCB terminal block from TE Connectivity. Its pitch is 9.53 mm. It has a straight body orientation. This is a 1-row connector. NC6-P107-02 is housed in polyamide. This device has a maximum current rating of 20 A/contact. This product is 20.54 mm long, 16.51 mm tall and 16 mm deep. Its wire is 12-22 AWG. This quick disconnect terminal has an operating temperature of -40 to 105 °C. It uses the solder termination method.

安富利:
Conn Barrier Strip 2 POS 9.53mm Solder ST Thru-Hole 20A/Contact

Verical:
Conn Barrier Strip 2 POS 9.53mm Solder ST Thru-Hole 20A/Contact Package

MASTER:
Conn Barrier Strip 2 POS 9.53mm Solder ST Thru-Hole 20A/Contact Package

Electro Sonic:
Conn Barrier Strip 2 POS 9.53mm Solder ST Thru-Hole 20A/Contact Package
