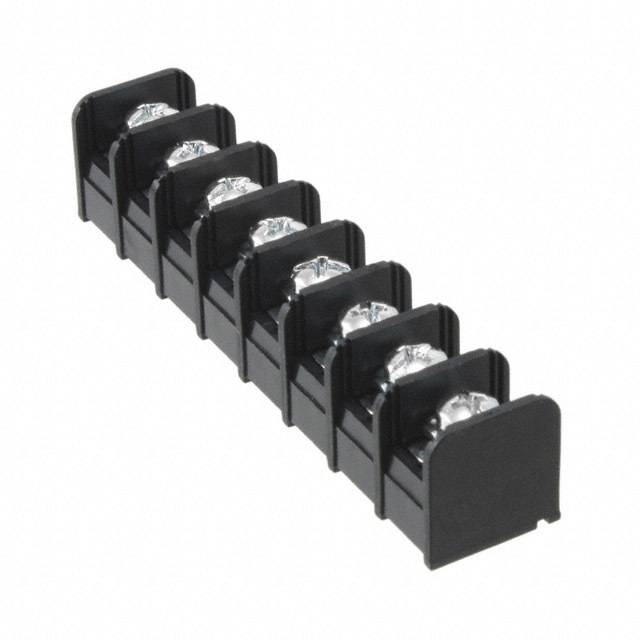

Conn Barrier Strip 8POS 9.53mm Solder ST Thru-Hole 20A/Contact
8 Circuit 0.375" 9.53mm Barrier Block Connector, Screws with Captive Plate
得捷:
CONN BARRIER STRIP 8CIRC 0.375"
艾睿:
Never worry about wires becoming undone by implementing this barrier strip NC6-P108-08 PCB terminal block developed by TE Connectivity. This is a 1-row connector. Its pitch is 9.53 mm. It has a straight body orientation. This device has a maximum current rating of 20 A/contact. NC6-P108-08 is housed in polyamide. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 77.74 mm long, 16.51 mm tall and 16 mm deep. It uses the solder termination method. Its wire is 12-22 AWG.
Verical:
Conn Barrier Strip 8 POS 9.53mm Solder ST Thru-Hole 20A/Contact Package
MASTER:
Conn Barrier Strip 8 POS 9.53mm Solder ST Thru-Hole 20A/Contact Package
Electro Sonic:
Conn Barrier Strip 8 POS 9.53mm Solder ST Thru-Hole 20A/Contact Package
触点数 8
线规 12AWG ~ 22AWG
触点电镀 Tin
排数 1
电路数 8
易燃性等级 UL 94 V-0
针脚数 8
额定电流Max 20A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 300 V
工作电压Max 300 V
安装方式 Through Hole
高度 16.51 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy, Steel
工作温度 -40℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
