5120786-1

Z-PACK™ HS3 连接器TE Conectivity Z-PACK HS3 板对板背板连接器系统专为高速串行数据传输设计。 Z-PACK HS3 的设计中整合了受控阻抗微波传输带路径，可最大限度地减少串扰和信号退化。 HS3 与其他 Z-PACK 系列连接器以及通用电源模块 UPM 兼容。 HS3 支持每个差分对 6.2+ Gbps 的数据速率。### TE Connectivity AMP Z-PACK™ 系列Z-PACK 2 mm HM 互连系统设计为两件式系统，用于自由板（子板或印刷电路板）和固定板（主板、背板或后面板）的连接，以及通过固定板馈通连接。

Z-PACK™ HS3

TE Conectivity Z-PACK HS3 板对板背板连接器系统专为高速串行数据传输设计。 Z-PACK HS3 的设计中整合了受控阻抗微波传输带路径，可最大限度地减少串扰和信号退化。 HS3 与其他 Z-PACK 系列连接器以及通用电源模块 UPM 兼容。 HS3 支持每个差分对 6.2+ Gbps 的数据速率。

得捷:
CONN RCPT DUAL BEAM 60P EDGE MNT

欧时:
Z-PACK™ HS3 连接器TE Conectivity Z-PACK HS3 板对板背板连接器系统专为高速串行数据传输设计。 Z-PACK HS3 的设计中整合了受控阻抗微波传输带路径，可最大限度地减少串扰和信号退化。 HS3 与其他 Z-PACK 系列连接器以及通用电源模块 UPM 兼容。 HS3 支持每个差分对 6.2+ Gbps 的数据速率。Z-PACK 2 mm HM 互连系统设计为两件式系统，用于自由板（子板或印刷电路板）和固定板（主板、背板或后面板）的连接，以及通过固定板馈通连接。

艾睿:

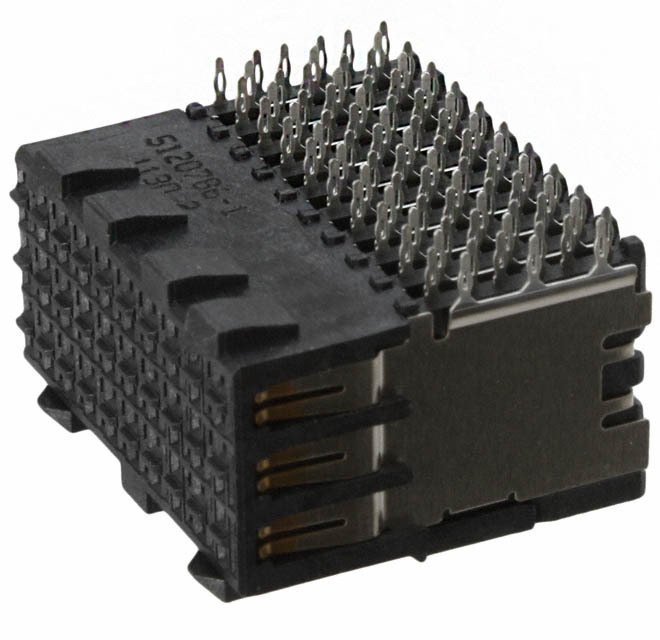

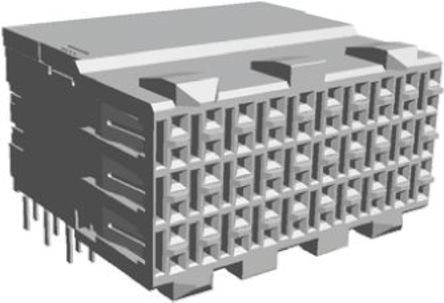

This hard metric 5120786-1 backplane connector from TE Connectivity can be designed to provide a high amount of data transfer capabilities across multiple channels. This RCP connector&s;s 60 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel. This is a 6-row connector. It has a right angle body orientation. It has a receptacle type gender. Its pitch is 2 mm. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 1.15 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This backplane connector has an operating temperature of -65 to 105 °C. 5120786-1 is housed in polyester. This product is 25.48 mm long, 14.1 mm tall and 22.67 mm deep. It uses the press fit termination method.

Allied Electronics:
ZP HS3 DB 06R REC 060P CT PD

Jameco:
Connector Hard Metric Recepticle 60 Position 2mm Press Fit Right Angle Thru-

安富利:
Conn Hard Metric RCP 60 POS 2mm Press Fit RA Thru-Hole

Verical:
Conn Hard Metric RCP 60 POS 2mm Press Fit RA Thru-Hole Tube

Newark:
ZP HS3 DB 06R REC 060P CT PD

Powell:
2mm Hard Metric PCB Connectors and Accessories Z-PACK HS3

Electro Sonic:
ZP HS3 DB 06R REC 060P CT PD
