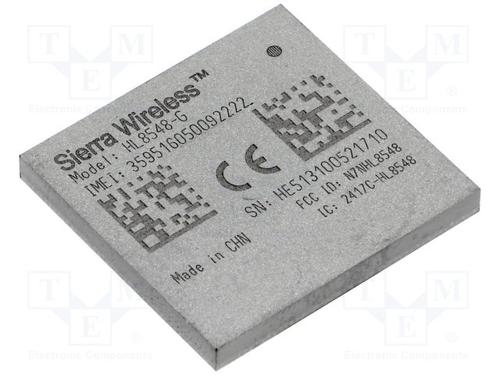

AirPrime HL 系列 3.7 V 5.76 Mbps 3G HSPA 和 2G 频段 模块 22 x 23 mm
The is an industrial grade embedded wireless module belong to the AirPrime HL series from essential connectivity module family global target region. It provides voice and data connectivity on GPRS, EDGE RX, WCDMA, HSDPA and HSUPA networks. AirPrime HL8518-G is from essential connectivity module family. Additionally, the AirPrime HL8548-G also provides a high performance GNSS receiver. It support a large variety of interface like digital audio and dual SIM single standby to provide customers with the highest level of flexibility in implementing high end solution. The compact form factor offers choice of soldering down module for efficient high volume production or using a snap-in socket on same solder pads for total flexibility in prototyping or smaller volume runs.
- .
- compact, robust and fully shielded module in 146 pin LGA pad
- .
- Smallest 2G to 4G form factor on the factor and solder down or snap-in socket option
- .
- Intelligent pin to pin compatibility and powered by AirVantage cloudbased service
- .
- 8 UART, USB, 2 ADC, 8 GPIO, flash LED output, PWM buzzer, Tx burst indicator & SIM 1.8V/3V
- .
- Supports TCP, UDP and FTP internet services and GPS & Glonass Sirf V location services
- .
- B1, B2, B5, B6, B8, B19 3G HSPA & 850, 900, 1800, 1900 2G EDGE/GSM/GPRS frequency bands
- .
- Digital audio, codec HR, FR, EFR, AMR, echo cancellation & noise reduction, DTMF
- .
- CE, FCC, PTCRB, GCF, IC, Anatel, CCC regulatory approval and AT&T carrier
- .
- 2.8V power supply for extended battery, 50µA alarm leakage, 1µA LTE standby and idle
- .
- Dimension of 22mm x 23mm x 2.5mm W x L x T and operating temperature range of -40°C to +85°C
