二极管与整流器
与整流器
得捷:

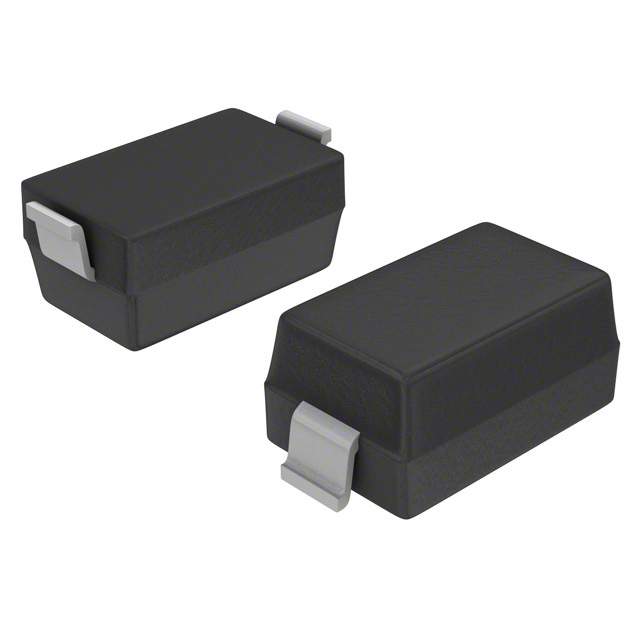

DIODE GEN PURP 100V 300MA SOD123
立创商城:
100V 300mA 4ns
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode 1N4148W-7-F rectifier from Diodes Zetex. Its maximum power dissipation is 400 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its peak non-repetitive surge current is 2 A, while its maximum continuous forward current is 0.15 A. It is made in a single configuration. This rectifier has an operating temperature range of -65 °C to 150 °C.
Allied Electronics:
Diode Switching 150mA 100V 400mW SOD123
富昌:
1N4148W Series 2 A 100 V 400 mW Surface Mount Fast Switching Diode - SOD-123
Chip1Stop:
Diode Switching 100V 0.3A Automotive 2-Pin SOD-123 T/R
TME:
Diode: switching; SMD; 100V; 4ns; 400mW; Package: reel, tape; SOD123
Verical:
Rectifier Diode Small Signal Switching 100V 0.3A 4ns 2-Pin SOD-123 T/R
Newark:
Small Signal Diode, Single, 100 V, 300 mA, 1.25 V, 4 ns, 2 A
儒卓力:
**SI-DIODE 0,15A 100V SOD123 **
Win Source:
DIODE GEN PURP 100V 300MA SOD123
额定电压DC 75.0 V
额定电流 150 mA
电容 2 pF
额定功率 400 mW
输出电流 ≤150 mA
针脚数 2
正向电压 1.25 V
极性 Standard
耗散功率 400 mW
反向恢复时间 4 ns
正向电流 300 mA
最大正向浪涌电流(Ifsm) 2 A
正向电压Max 1.25 V
正向电流Max 300 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 400 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123
长度 2.85 mm
宽度 1.7 mm
高度 1.25 mm
封装 SOD-123
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Signal Processing, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N4148W-7-F Diodes 美台 | 当前型号 | 当前型号 |
MMSD4148T1G 安森美 | 功能相似 | 1N4148W-7-F和MMSD4148T1G的区别 |
1N4148WT-7 美台 | 功能相似 | 1N4148W-7-F和1N4148WT-7的区别 |
MMSD914T1G 安森美 | 功能相似 | 1N4148W-7-F和MMSD914T1G的区别 |
