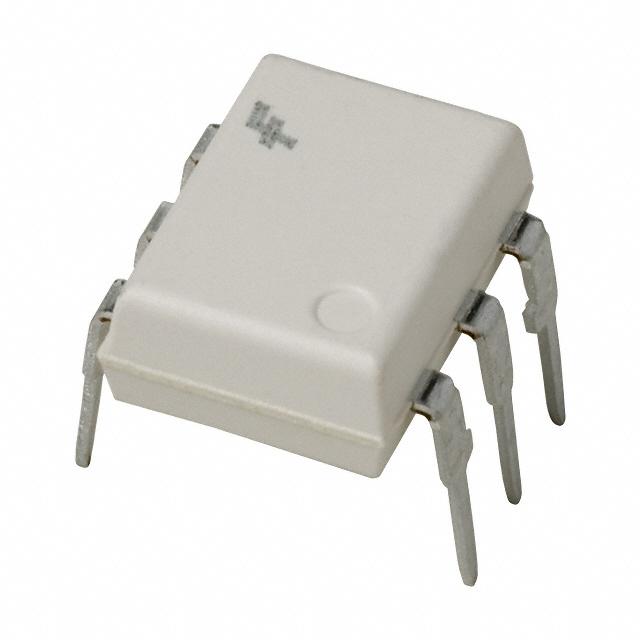

FAIRCHILD SEMICONDUCTOR H11L3M 光耦合器,施密特触发器
The H11L3-M is a 1-channel 6-pin H11LXM series Schmitt Trigger Output Optocoupler has a high-speed integrated circuit detector optically coupled to a gallium-arsenide infrared emitting diode. The output incorporates a Schmitt trigger, which provides hysteresis for noise immunity and pulse shaping. The detector circuit is optimized for simplicity of operation and utilizes an open collector output for maximum application flexibility.
- .
- High data rate, 1MHz typical NRZ
- .
- Free from latch up and oscillation throughout voltage and temperature ranges
- .
- Microprocessor compatible drive
- .
- Logic compatible output sinks 16mA at 0.4Vmax
- .
- Guaranteed on/off threshold hysteresis
- .
- Wide supply voltage capability, compatible with all popular logic systems
上升/下降时间 100 ns
输入电压DC 1.20 V
输出电压 16.0 V
输出电流 0.05 A
电路数 1
通道数 1
针脚数 6
正向电压 1.2 V
输入电流 10.0 mA
耗散功率 0.25 W
数据速率 1.00 Mbps
上升时间 0.1 µs
隔离电压 7.5 kV
正向电流 30 mA
击穿电压 6 V
正向电压Max 1.5 V
正向电流Max 60 mA
下降时间 0.1 µs
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 250 mW
电源电压 3V ~ 15V
安装方式 Through Hole
引脚数 6
封装 DIP-6
高度 3.53 mm
封装 DIP-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
H11L3M Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
H11L1VM 飞兆/仙童 | 完全替代 | H11L3M和H11L1VM的区别 |
H11L1M 安森美 | 功能相似 | H11L3M和H11L1M的区别 |
