板至板连接, 0.635 mm, 104 触点, 针座, QMS Series, 表面安装 , 2 排
104 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
得捷:
CONN HDR 104POS SMD GOLD
欧时:
0.64mm Power Q2 QMS SMT header, 104P
e络盟:
板至板连接, 0.635 mm, 104 触点, 针座, QMS Series, 表面安装 , 2 排
艾睿:

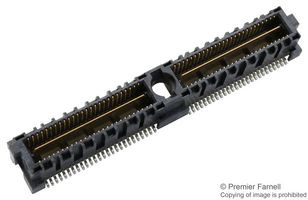

Safety is an important concern when designing electronic devices. Samtec&s;s micro high speed terminal strip QMS-052-05.75-L-D-A header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 104 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a maximum voltage rating of 300 VAC. It has a header type gender. It has a straight body orientation. Its pitch is 0.635 mm. This device has a maximum current rating of 2.6/15.7 A/contact. It uses the solder termination method. This product is 42.17 mm long, 5.76 mm tall and 7.52 mm deep. This connector has an operating temperature of -55 to 125 °C. QMS-052-05.75-L-D-A is housed in black liquid crystal polymer.
安富利:
Conn Micro High Speed Terminal Strip HDR 104 POS 0.635mm Solder ST SMD
Chip1Stop:
Conn Micro High Speed Terminal Strip HDR 104 POS 0.635mm Solder ST SMD
Newark:
# SAMTEC QMS-052-05.75-L-D-A Board-To-Board Connector, 0.635 mm, 104 Contacts, Header, QMS Series, Solder, 2 Rows
