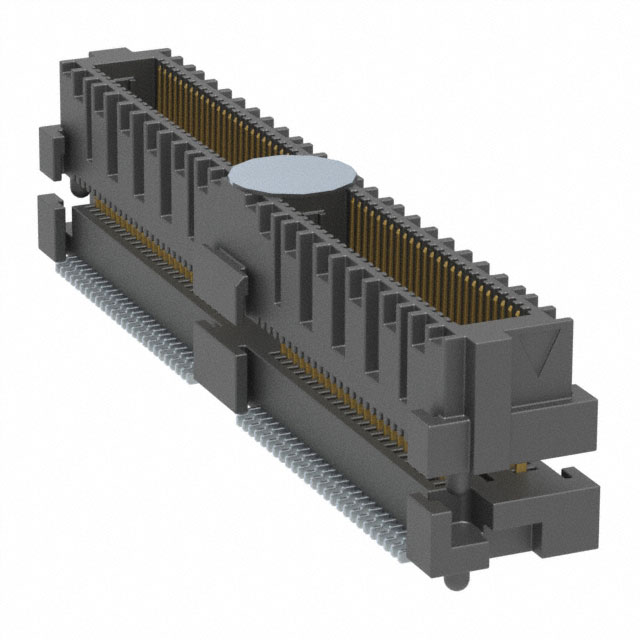

QMS-052-09.75-SL-D-A-K

Conn Micro High Speed Terminal Strip HDR 104POS 0.635mm Solder ST SMD

104 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

得捷:
.635MM DOUBLE ROW TERMINAL STRIP

欧时:
0.64mm Power Q2 QMS SMT header, 104P

艾睿:
Samtec brings you their micro high speed terminal strip QMS-052-09.75-SL-D-A-K header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector&s;s 104 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 0.635 mm. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 300 VAC. It has a header type gender. This device has a maximum current rating of 2.6/15.7 A/contact. This product is 42.17 mm long, 9.72 mm tall and 7.52 mm deep. QMS-052-09.75-SL-D-A-K is housed in liquid crystal polymer. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Micro High Speed Terminal Strip HDR 104 POS 0.635mm Solder ST SMD

Newark:
# SAMTEC  QMS-052-09.75-SL-D-A-K  .635mm DOUBLE ROW TERMINAL STRIP
