QSH-030-01-F-D-A-K-TR

Conn Micro High Speed Socket Strip SKT 60POS 0.5mm Solder ST SMD T/R

60 位置 插座，中央带触点 表面贴装型 镀金

欧时:
0.50 mm Q Strip High-Speed Ground Plane

得捷:
CONN RCPT 60POS SMD GOLD

立创商城:
QSH-030-01-F-D-A-K-TR

艾睿:

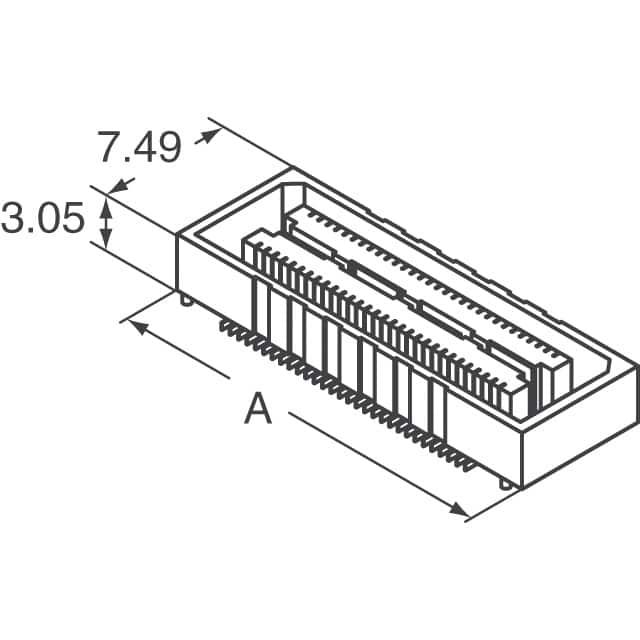

Look no further than the micro high speed socket strip QSH-030-01-F-D-A-K-TR header connector from Samtec, a great tool to use when board-to-board interconnects is required. This SKT connector&s;s 60 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. It has a socket type gender. It has a maximum voltage rating of 125 VAC. Its pitch is 0.5 mm. This device has a maximum current rating of 2/25 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 21.27 mm long, 3.25 mm tall and 7.49 mm deep. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. QSH-030-01-F-D-A-K-TR is housed in black liquid crystal polymer.

安富利:
Conn Micro High Speed Socket Strip SKT 60 POS 0.5mm Solder ST SMD T/R

Chip1Stop:
Conn Micro High Speed Socket Strip SKT 60 POS 0.5mm Solder ST SMD T/R

Newark:
# SAMTEC  QSH-030-01-F-D-A-K-TR  .5mm DOUBLE ROW MI SOCKET ASSEMBLY

Electro Sonic:
0.50 mm Q Strip® High-Speed Ground Plane Socket Strip
