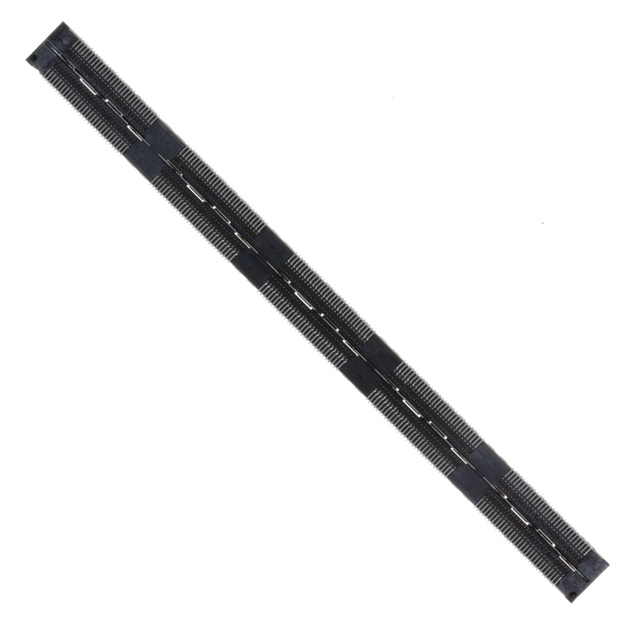

Conn Micro High Speed Socket Strip SKT 300POS 0.5mm Solder ST SMD
300 位置 插座,中央带触点 表面贴装型 镀金
得捷:
CONN RCPT 300POS SMD GOLD
艾睿:
Think of Samtec&s;s micro high speed socket strip QSH-150-01-L-D-A header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This SKT connector&s;s 300 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. It has a maximum voltage rating of 125 VAC. Its pitch is 0.5 mm. This is a 2-row connector. It has a straight body orientation. This device has a maximum current rating of 2/25 A/contact. QSH-150-01-L-D-A is housed in black liquid crystal polymer. This product is 101.27 mm long, 3.25 mm tall and 7.49 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.
安富利:
Conn Micro High Speed Socket Strip SKT 300 POS 0.5mm Solder ST SMD
Chip1Stop:
Conn Micro High Speed Socket Strip SKT 300 POS 0.5mm Solder ST SMD
Newark:
# SAMTEC QSH-150-01-L-D-A Stacking Board Connector, QSH Series, 300 Contacts, Receptacle, 0.5 mm, Surface Mount, 2 Rows
触点数 300
极性 Female
触点电镀 Gold
额定电压AC 125 V
额定电流 1.00 A
排数 2
针脚数 300
拔插次数 100
额定电流Max 2A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 125 VAC
安装方式 Surface Mount
引脚间距 500 µm
长度 101.27 mm
宽度 7.24 mm
高度 3.25 mm
引脚间距 500 µm
外壳颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
