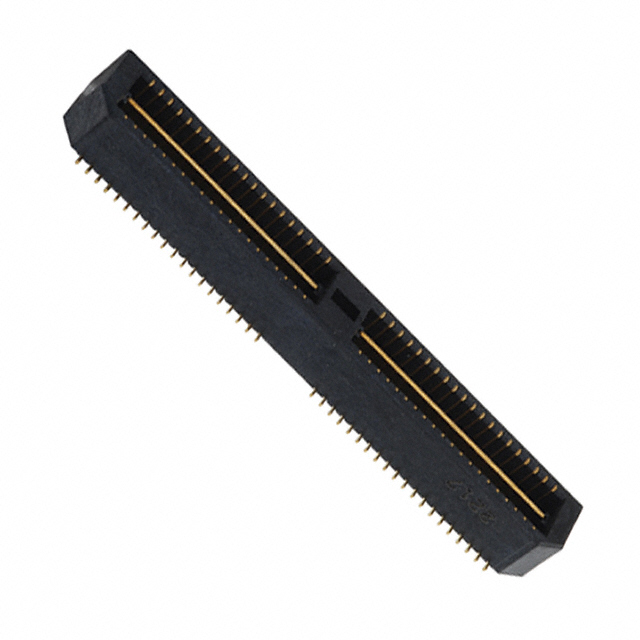

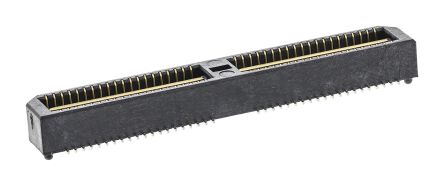

QTE-040-01-L-D-A

SAMTEC  QTE-040-01-L-D-A  堆叠板连接器, 双排, QTE系列, 80 触点, 针座, 0.8 mm, 表面安装　, 2 排

QTE 系列高速接地板敷管座

此系列的板对板 QTE 系列 0.8 mm 节距高速接地板敷管座具有对准引脚。 这些板对板 QTE 系列 0.8 mm 节距高速接地板敷管座的触点和金属接地板具有 0.25 μm 镀金，尾线为镀锡。

### 注

.

*01**-X-X-X 高度 4.27 mm。

.

*02**-X-X-X 高度 7.26 mm。

.

*03**-X-X-X 高度 10.26 mm。

.

*04**-X-X-X 高度 15.25 mm。

得捷:
CONN HDR 80POS SMD GOLD

欧时:
QTE SMT 0.8mm 4.27mm high socket 2x40W

艾睿:
Use this high speed micro plane QTE-040-01-L-D-A connector from Samtec when board-to-board interconnects is required. This HDR connector&s;s 80 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 225 VAC. Its pitch is 0.8 mm. This device has a maximum current rating of 2/23 A/contact. This component will be shipped in tray format. This product is 40 mm long, 4.27 mm tall and 7.11 mm deep. This connector has an operating temperature of -55 to 125 °C. QTE-040-01-L-D-A is housed in black liquid crystal polymer. It uses the solder termination method.

安富利:
Conn Micro High Speed Terminal Strip HDR 80 POS 0.8mm Solder ST SMD

Chip1Stop:
Conn High Speed Micro Plane HDR 80 POS 0.8mm Solder ST SMD Tray

Verical:
Conn High Speed Micro Plane HDR 80 POS 0.8mm Solder ST SMD Tray

Newark:
# SAMTEC  QTE-040-01-L-D-A  Stacking Board Connector, QTE Series, 80 Contacts, Header, 0.8 mm, Surface Mount, 2 Rows
