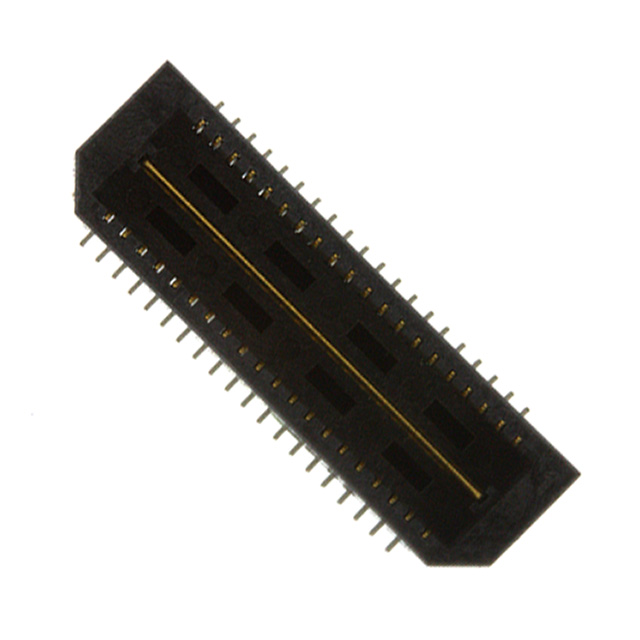

SAMTEC QTE-020-02-L-D-A 堆叠板连接器, 双排, QTE系列, 40 触点, 针座, 0.8 mm, 表面安装 , 2 排

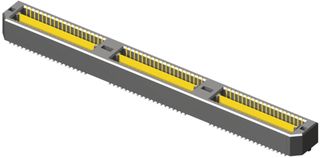

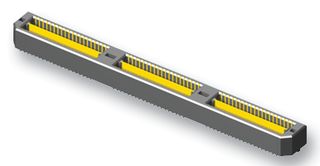

QTE 系列高速接地板敷管座
此系列的板对板 QTE 系列 0.8 mm 节距高速接地板敷管座具有对准引脚。 这些板对板 QTE 系列 0.8 mm 节距高速接地板敷管座的触点和金属接地板具有 0.25 μm 镀金,尾线为镀锡。
### 注
QTE-xxx- 得捷:
CONN HDR 40POS SMD GOLD
欧时:
Header 0.8mm Qstrip 20+20way
e络盟:
堆叠板连接器, 双排, QTE系列, 40 触点, 针座, 0.8 mm, 表面安装 , 2 排
艾睿:
This high speed micro plane QTE-020-02-L-D-A header connector from Samtec reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 0.8 mm. This is a 2-row connector. It has a header type gender. It has a maximum voltage rating of 225 VAC. This device has a maximum current rating of 2/23 A/contact. This connector has an operating temperature of -55 to 125 °C. This product is 20 mm long, 7.26 mm tall and 7.11 mm deep. QTE-020-02-L-D-A is housed in black liquid crystal polymer. It uses the solder termination method.
安富利:
Conn Micro High Speed Terminal Strip HDR 40 POS 0.8mm Solder ST SMD
Chip1Stop:
Conn High Speed Micro Plane HDR 40 POS 0.8mm Solder ST SMD Tray
Verical:
Conn High Speed Micro Plane HDR 40 POS 0.8mm Solder ST SMD Tray
Newark:
# SAMTEC QTE-020-02-L-D-A Stacking Board Connector, QTE Series, 40 Contacts, Header, 0.8 mm, Surface Mount, 2 Rows
Electro Sonic:
Stacking Board Connector - Dual Row - 40 Contacts - Header - 0.8 mm - Surface Mount - 2 Rows.
Win Source:
CONN HDR 40POS SMD GOLD / 40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
触点数 40
极性 Male
触点电镀 Gold
额定电压AC 225 V
额定电流 1.3 A
排数 2
针脚数 40
拔插次数 100
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 225 VAC
额定电压 225 VAC
接触电阻Max 15 mΩ
安装方式 Surface Mount
引脚间距 800 µm
长度 20 mm
宽度 5.97 mm
高度 7.26 mm
引脚间距 800 µm
外壳颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
QTE-020-02-L-D-A Samtec 申泰电子 | 当前型号 | 当前型号 |
QTE-020-02-F-D-A 申泰电子 | 完全替代 | QTE-020-02-L-D-A和QTE-020-02-F-D-A的区别 |
QTE-020-02-C-D-A 申泰电子 | 完全替代 | QTE-020-02-L-D-A和QTE-020-02-C-D-A的区别 |
QTE-020-02-H-D-A 申泰电子 | 完全替代 | QTE-020-02-L-D-A和QTE-020-02-H-D-A的区别 |
