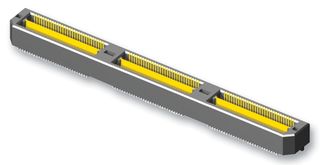

QTH-030-04-L-D-A

SAMTEC  QTH-030-04-L-D-A  堆叠板连接器, 双排, QTH系列, 60 触点, 针座, 0.5 mm, 表面安装　, 2 排

60 位置 接头，外罩触点 表面贴装型 镀金

得捷:
CONN HDR 60POS SMD GOLD

欧时:
### QTH Series High Speed Ground Plane HeaderThese Board to Board QTH Series SMT 0.5 mm pitch High Speed Ground Plane Headers have 0.25 μm Gold plated contacts and Ground Plane with Matte Tin plated tails. This range of Board- to-Board QTH Series SMT 0.5 mm pitch High Speed Ground Plane Headers are available with various body heights which gives a range of stack heights when mated with the corresponding QSH Series Sockets, see stock number 767-8701 typical. The design of this range of Board to Board QTH Series SMT 0.5 mm pitch High Speed Ground Plane Headers includes Alignment Pins.### 0.5mm Pitch -Samtec

立创商城:
QTH-030-04-L-D-A

艾睿:
Thanks to Samtec&s;s micro high speed terminal strip QTH-030-04-L-D-A header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 60 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 0.5 mm. It has a straight body orientation. It has a maximum voltage rating of 125 VAC. This is a 2-row connector. This device has a maximum current rating of 2/25 A/contact. This connector has an operating temperature of -55 to 125 °C. QTH-030-04-L-D-A is housed in liquid crystal polymer. This product is 20 mm long, 15.24 mm tall and 7.11 mm deep. It uses the solder termination method.

安富利:
Conn Micro High Speed Terminal Strip HDR 60 POS 0.5mm Solder ST SMD

Verical:
Conn Micro High Speed Terminal Strip HDR 60 POS 0.5mm Solder ST SMD Tray

Newark:
# SAMTEC  QTH-030-04-L-D-A  Stacking Board Connector, QTH Series, 60 Contacts, Header, 0.5 mm, Surface Mount, 2 Rows
