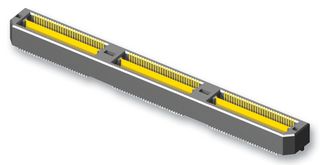

QTH-060-01-L-D-A-K-TR

Conn Micro High Speed Terminal Strip HDR 120POS 0.5mm Solder ST SMD T/R

120 位置 接头，外罩触点 表面贴装型 镀金

欧时:
0.50 mm Q Strip High-Speed Ground Plane

得捷:
CONN HDR 120POS SMD GOLD

立创商城:
QTH-060-01-L-D-A-K-TR

艾睿:

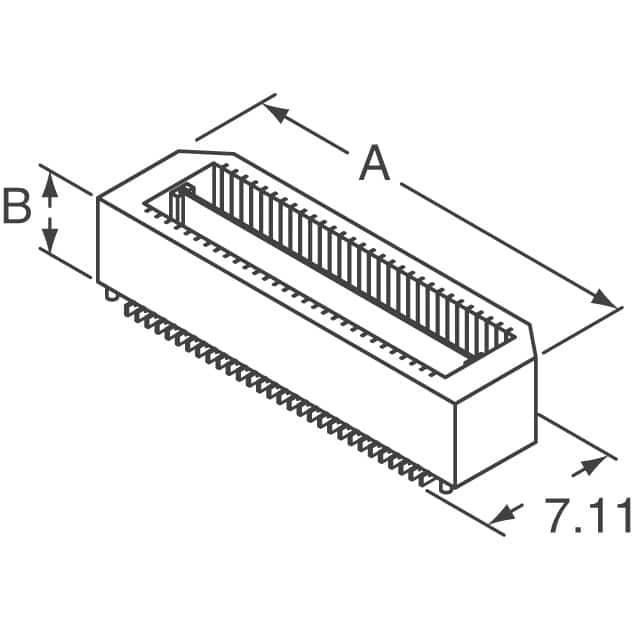

Are you looking for a solution to support physical configuration options on your PCB? Then mount this micro high speed terminal strip QTH-060-01-L-D-A-K-TR header connector from Samtec on your PCB today! This HDR connector&s;s 120 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 0.5 mm. It has a header type gender. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 125 VAC. This device has a maximum current rating of 2/25 A/contact. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It uses the solder termination method. This product is 40 mm long, 4.27 mm tall and 7.11 mm deep. This connector has an operating temperature of -55 to 125 °C. QTH-060-01-L-D-A-K-TR is housed in liquid crystal polymer.

Chip1Stop:
Conn Micro High Speed Terminal Strip HDR 120 POS 0.5mm Solder ST SMD Automotive T/R

Verical:
Conn Micro High Speed Terminal Strip HDR 120 POS 0.5mm Solder ST SMD T/R

Newark:
# SAMTEC  QTH-060-01-L-D-A-K-TR  Stacking Board Connector, QTH Series, 120 Contacts, Header, 0.5 mm, Surface Mount, 2 Rows

Electro Sonic:
0.50 mm Q Strip® High-Speed Ground Plane Terminal Strip
