Conn Micro High Speed Terminal Strip HDR 120POS 0.5mm Solder ST SMD Tray
120 位置 差分对阵列，公 表面贴装型 镀金
得捷:
.5MM DOUBLE ROW MI SOCKET ASSEMB
艾睿:

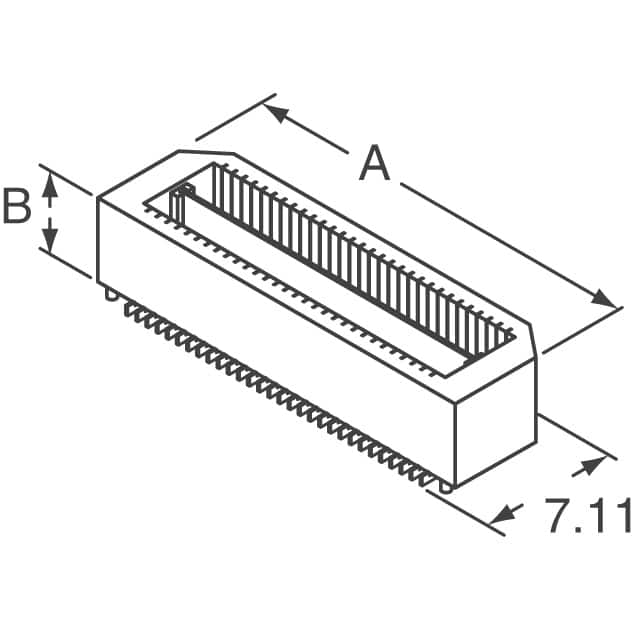

Use this micro high speed terminal strip QTH-060-03-C-D-A header connector from Samtec where IDC ribbon cables are used. This HDR connector&s;s 120 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 0.5 mm. This is a 2-row connector. It has a maximum voltage rating of 125 VAC. It has a header type gender. This device has a maximum current rating of 2/25 A/contact. QTH-060-03-C-D-A is housed in liquid crystal polymer. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 40 mm long, 10.27 mm tall and 7.11 mm deep.
Verical:
Conn Micro High Speed Terminal Strip HDR 120 POS 0.5mm Solder ST SMD Tray
Newark:
# SAMTEC QTH-060-03-C-D-A .5mm DOUBLE ROW MI SOCKET ASSEMBLY
