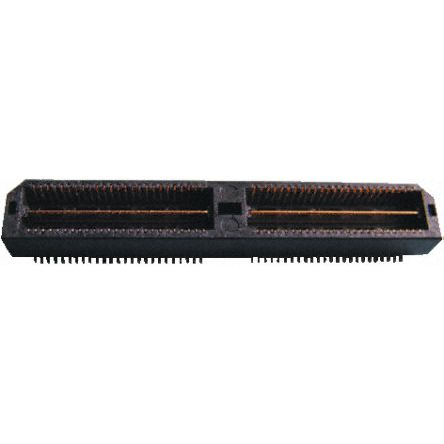

SAMTEC QTS-025-01-L-D-A 板至板连接, 高速, QTS系列, 50 触点, 针座, 0.635 mm, 表面安装 , 2 排
0.635mm 贴片安装高速针座 - QSS/QTS 系列
贴片安装针座,适用于板堆叠应用
单端或差位对互连
应用:高速通信接口
### 认可
Connector,PCB,multipole,0.635mm pitch,SMT,QSS/QTS,header,2x25way
得捷:
CONN HDR 50POS SMD GOLD
欧时:
SMT 0.635MM HEADER 2X25 W
e络盟:
Mezzanine连接器, 高速, 接地条, 针座, 0.635 mm, 2 排, 50 触点, 表面安装, 磷青铜
艾睿:
Easily mount this micro high speed terminal strip QTS-025-01-L-D-A header connector from Samtec onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 0.635 mm. This is a 2-row connector. It has a header type gender. It has a maximum voltage rating of 285 VAC. It has a straight body orientation. This device has a maximum current rating of 1.8/7.8 A/contact. This component will be shipped in tray format. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 20 mm long, 4.27 mm tall and 7.11 mm deep. QTS-025-01-L-D-A is housed in liquid crystal polymer.
安富利:
Conn Micro High Speed Terminal Strip HDR 50 POS 0.635mm Solder ST SMD
Newark:
# SAMTEC QTS-025-01-L-D-A Board-To-Board Connector, 0.635 mm, 50 Contacts, Header, QTS Series, Solder, 2 Rows
触点数 50
极性 Male
触点电镀 Gold
额定电流 1.1 A
排数 2
针脚数 50
拔插次数 100
额定电流Max 1.8A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 285 VAC
额定电压 285 VAC
安装方式 Surface Mount
高度 4.27 mm
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
QTS-025-01-L-D-A Samtec 申泰电子 | 当前型号 | 当前型号 |
QTS-025-01-F-D-A 申泰电子 | 完全替代 | QTS-025-01-L-D-A和QTS-025-01-F-D-A的区别 |
