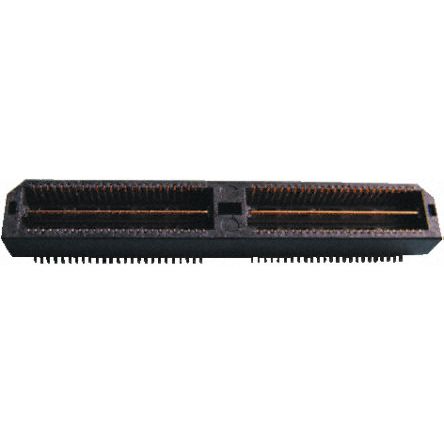

QTS-050-01-L-D-A

0.635mm 贴片安装高速针座 - QSS/QTS 系列贴片安装针座，适用于板堆叠应用 单端或差位对互连 应用：高速通信接口 Stack height | 5 mm ---|--- Terminal material | Phosphor Bronze Plating | 0.25μm Gold on signal pins and ground plane Insulator material | Liquid Crystal Polymer Insertion loss | Rated @ -3dB Single-end signaling | 9GHz/18Gbps Differential pair signaling | 8.5GHz/17Gbps Operating temperature | -55 to 125°C ### 0.635 Board to Board Samtec

0.635mm 贴片安装高速针座 - QSS/QTS 系列

贴片安装针座，适用于板堆叠应用

单端或差位对互连

应用：高速通信接口

Stack height | 5 mm

---|---

Terminal material | Phosphor Bronze

Plating | 0.25μm Gold on signal pins and ground plane

Insulator material | Liquid Crystal Polymer

Insertion loss | Rated @ -3dB

Single-end signaling | 9GHz/18Gbps

Differential pair signaling | 8.5GHz/17Gbps

Operating temperature | -55 to 125°C

得捷:
CONN HEADER 100POS .635MM SMT

欧时:
Samtec PCB 针座 Q Strip QTS 系列 100路 0.635mm节距 2排 直向 QTS-050-01-L-D-A, 焊接端接, 1.1A

艾睿:
Think of Samtec&s;s micro high speed terminal strip QTS-050-01-L-D-A header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 100 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 0.635 mm. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 285 VAC. This device has a maximum current rating of 1.8/7.8 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 40 mm long, 4.27 mm tall and 7.11 mm deep. QTS-050-01-L-D-A is housed in liquid crystal polymer. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Micro High Speed Terminal Strip HDR 100 POS 0.635mm Solder ST SMD Tube

Verical:
Conn Micro High Speed Terminal Strip HDR 100 POS 0.635mm Solder ST SMD Tray

Newark:
# SAMTEC  QTS-050-01-L-D-A  Board-To-Board Connector, 0.635 mm, 100 Contacts, Header, QTS Series, Solder, 2 Rows
