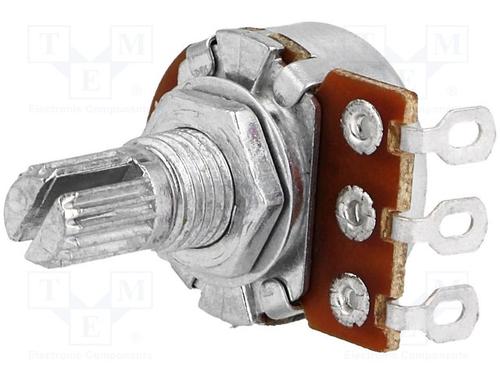

R16148-1A-1-A1K中文资料参数规格
技术参数
额定功率 63 mW
电阻 1 kΩ
其他
Type of potentiometer shaft
Kind of potentiometer single turn
Resistance 1kΩ
Power 63mW
Tolerance ±20%
Mounting on cable
Shaft diameter 6mm
Shaft length 9mm
Characteristics logarithmic
Body dimensions Ø17 x 9.2mm
Thread length 6mm
Body material metal
Leads solder lugs
Track material carbon
Potentiometer features mono
Shaft surface knurled
Mechanical rotation angle 300°
L shaft length 15mm
Max. operating voltage 150V
Panel cutout diameter 7.2mm
符合标准
RoHS标准 RoHS Compliant
在线购买R16148-1A-1-A1K
型号： R16148-1A-1-A1K
制造商：
SR Passives
描述：Potentiometer: shaft; single turn; 1kΩ; 0.063W1/16W; ±20%; on cable; 6mm
