H7028NL

H7028NL图片1
H7028NL图片2

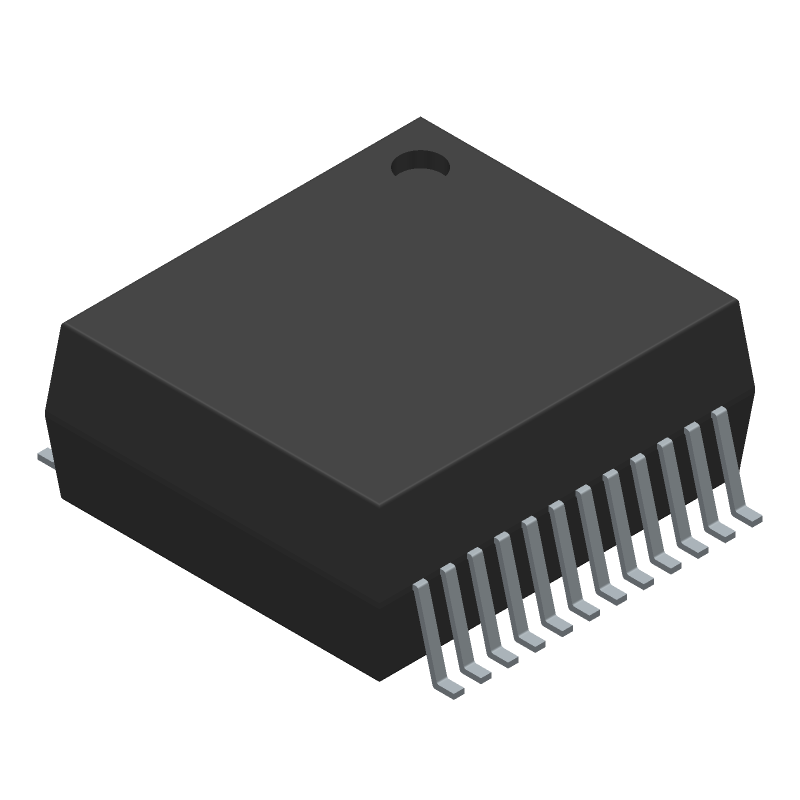

H7028NL图片3

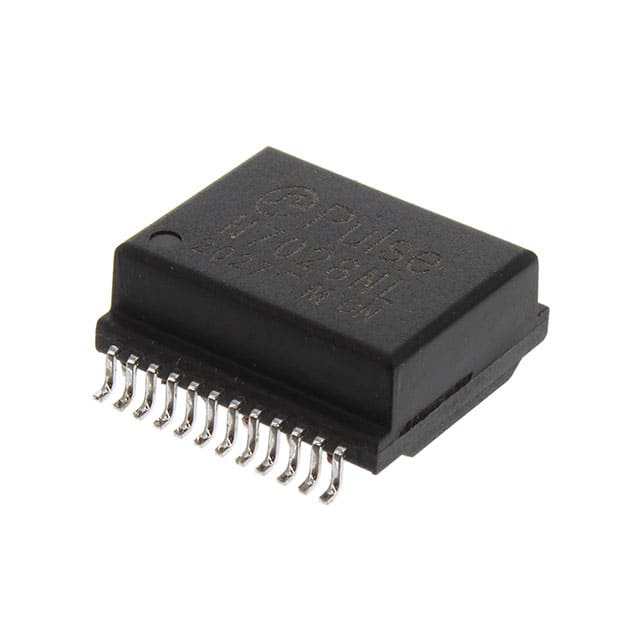

H7028NL图片4
H7028NL概述

Telecom Transformer 1: 1 1500Vrms -1dB Surface Mount

is manufactured by and is categorized in the Pulse Transformers category. H7028NL is described as 10GBASE-T DISCRETE 4CH BCM PHY. Perfect Parts is a supplier of Transformers and other Miscellaneous.


得捷:
10GBASE-T DISCRETE 4CH BCM PHY


贸泽:
Audio Transformers / Signal Transformers 10GBASE-T, Discrete, 4ch, BCM PHY


艾睿:
For applications requiring high switching speeds, add this H7028NL telecom transformer developed by Pulse to a telecommunication system. This telecom transformer has an operating temperature range of 0 °C to 70 °C. It has 24 terminals. This product is 13.72 mm long, 5.72 mm tall and 15.24 mm deep. It has a turn ratio of 1:1.


Verical:
Telecom Transformer 1:1 24 Terminal Gull Wing SMD


H7028NL中文资料参数规格
技术参数

电感 120 μH

隔离电压 1500 Vrms

工作温度Max 70 ℃

工作温度Min 0 ℃

封装参数

安装方式 Surface Mount

引脚数 24

外形尺寸

高度 5.72 mm

物理参数

工作温度 0℃ ~ 70℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

H7028NL引脚图与封装图
H7028NL引脚图
H7028NL封装焊盘图
在线购买H7028NL
型号: H7028NL
制造商: Pulse Electronics 普思电子
描述:Telecom Transformer 1: 1 1500Vrms -1dB Surface Mount
替代型号H7028NL
型号/品牌 代替类型 替代型号对比

H7028NL

Pulse Electronics 普思电子

当前型号

当前型号

H7028FNL

普思电子

功能相似

H7028NL和H7028FNL的区别
