TMM-111-01-S-D

Conn Unshrouded Header HDR 22POS 2mm Solder ST Thru-Hole Automotive Bulk

Connector Header Through Hole 22 position 0.079" 2.00mm

得捷:
CONN HEADER VERT 22POS 2MM

艾睿:

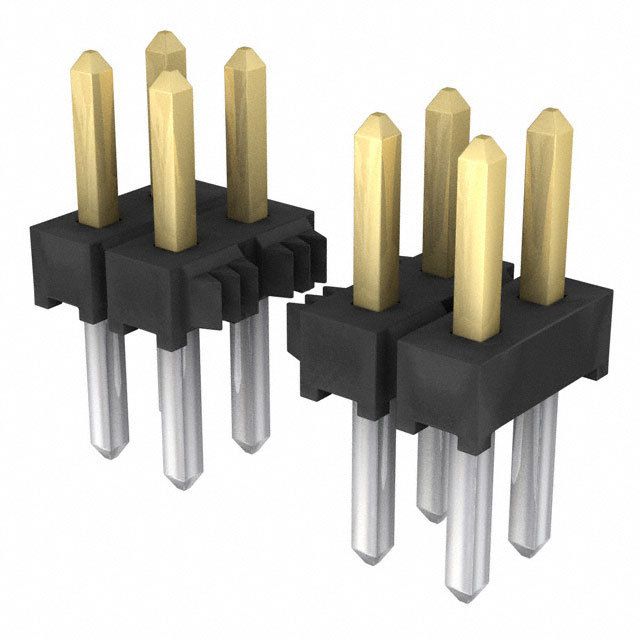

Think of Samtec&s;s unshrouded TMM-111-01-S-D header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 22 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 500 VAC. Its pitch is 2 mm. This device has a maximum current rating of 5.5 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 125 °C. TMM-111-01-S-D is housed in black liquid crystal polymer. This product is 22 mm long, 4.7 mm tall and 3.94 mm deep. It uses the solder termination method.

Verical:
Conn Unshrouded Header HDR 22 POS 2mm Solder ST Top Entry Thru-Hole Bulk

Newark:
# SAMTEC  TMM-111-01-S-D  2mm TERMINAL STRIP
