UE75A203000T

UE75A203000T图片1
UE75A203000T概述

输入输出连接器, 20 触点, 插座, SFP Connector, 表面安装 , UE75系列, 表面安装

The is a SFP standard Interconnect System with gold-plated copper alloy contacts and UL94V-0 rated glass reinforced, lead-free solder reflow process compatible thermoplastic housing. This interconnect system consists of a 20-position connector enclosed in a metal cage mounted to a host PCB. The single-port SFP connector is rated up to 6Gbps. The connector accepts multiple transceivers per INF-8074i and combines, transmits and receives functions in a compact and flexible format.

.
Hot swappable
.
3.3V Operating voltage
.
0.5A Operating current
.
300VAC Dielectric withstanding voltage
.
1000MR Minimum insulation resistance
.
70mR Maximum contact resistance
.
250 Mating cycles minimum durability
UE75A203000T中文资料参数规格
技术参数

触点数 20

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

制造应用 工业

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

UE75A203000T引脚图与封装图
UE75A203000T引脚图
UE75A203000T封装图

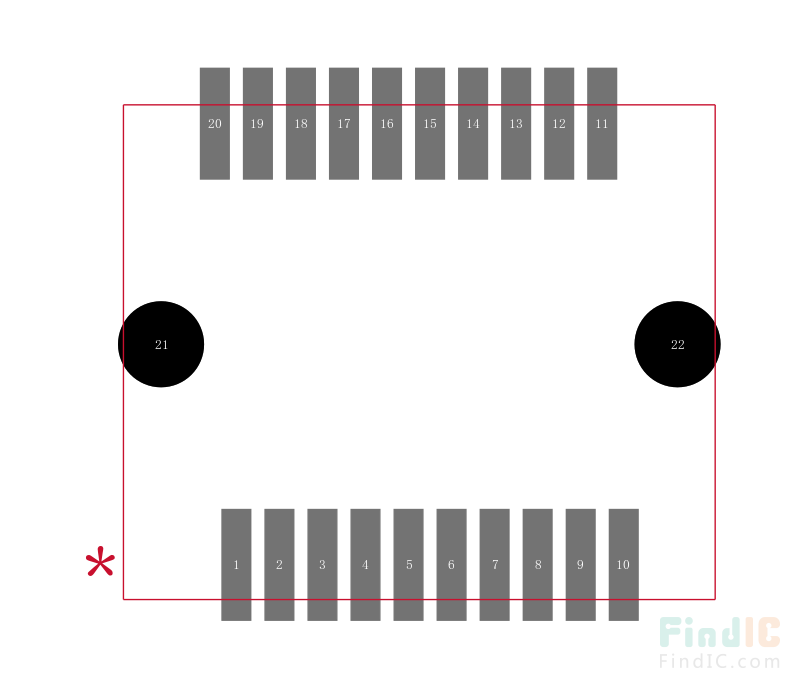

UE75A203000T封装焊盘图
在线购买UE75A203000T
型号: UE75A203000T
制造商: Amphenol ICC
描述:输入输出连接器, 20 触点, 插座, SFP Connector, 表面安装 , UE75系列, 表面安装
