安装方式 Through Hole
工作温度 -40℃ ~ 85℃

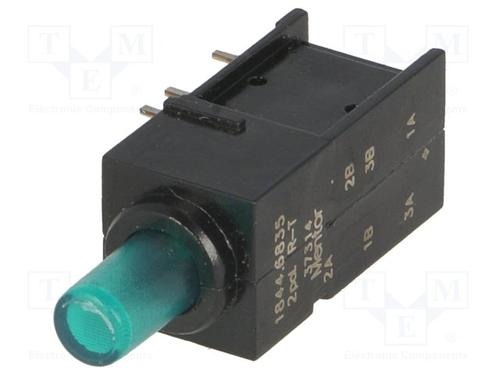

Switch type microswitch
Stable positions number 1-position
Contacts configuration DPDT
DC contacts rating 0.5 A / 60 VDC
Mounting THT
Illumination LED
Backlight colour green
Switching torque 8N
Body dimensions 29.66 x 9.95 x 9.95mm
Button height 7.4mm
Switching method ON-ON
AC contacts rating 0.5 A / 60 VAC
Button shape round
Terminal pitch 2.54mm
Operating temperature -40...85°C
Key button colour green
Leads for PCB, straight
Max. contact resistance 30mΩ
Min. insulation resistance 100000MΩ
Mechanical durability 20000cycles
Dimensions see
RoHS标准 RoHS Compliant
