5-1634504-1

TE CONNECTIVITY / GREENPAR  5-1634504-1  射频/同轴连接器, BNC同轴, 直型隔板安装插座, 焊接, 50 ohm, 磷青铜

50Ω ZDC/BNC 射频同轴绝缘隔板插座

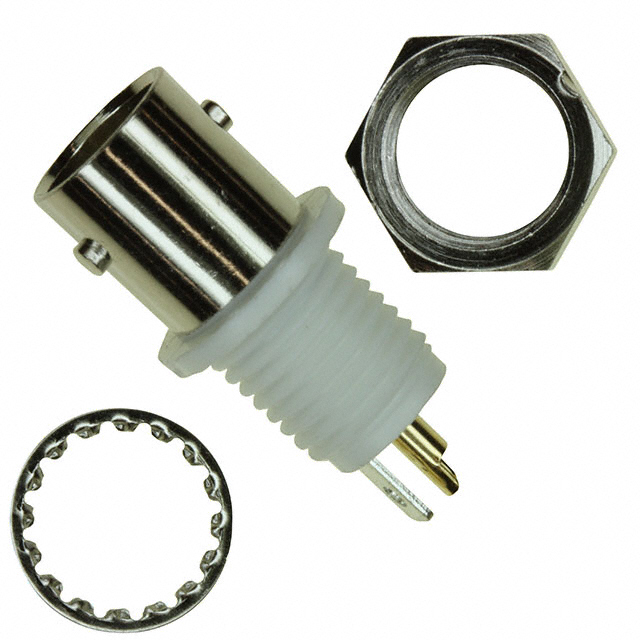

50Ω ZDC BNC 射频同轴绝缘隔板插座连接器，带卡口耦合、焊接端子和接地片。 这些 50Ω BNC 射频同轴绝缘隔板插座连接器为前面板安装，具有 PBT 绝缘体、热塑电介质、镀镍压铸锌主体和镀金中心触点。

欧时:

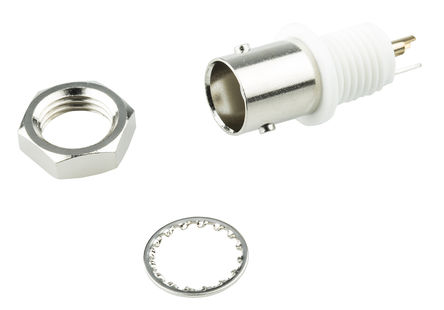

TE Connectivity Greenpar 系列 50Ω 直向 面板安装 隔板安装 母 BNC 连接器 5-1634504-1, 0 → 4GHz

得捷:
CONN BNC JACK STR 50 OHM SOLDER

贸泽:
RF Connectors / Coaxial Connectors BH Skt 50Ohm Nickel Gold

艾睿:

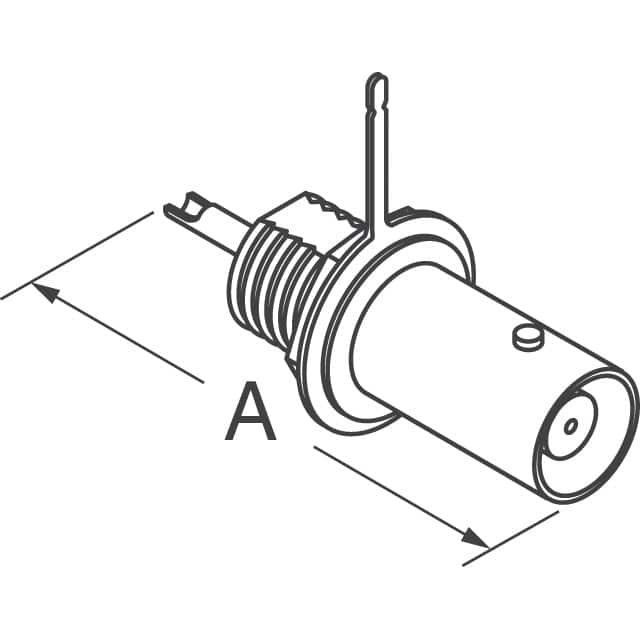

Ideal for any cable need, this zdc/bnc 5-1634504-1 RF connector from TE Connectivity will bring a strong connection to your transmission line so you do not have to worry again. This connector&s;s body is plated in nickel over copper. It has a straight body orientation. It has a receptacle type gender. It has an operating frequency of 0 to 4G Hz. This product is 26.9 mm long with a diameter of 12.7 mm. This rf connector has an operating temperature of -55 to 85 °C. It uses the solder termination method.

Allied Electronics:

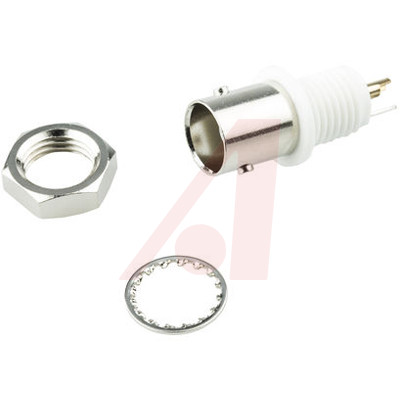

Straight 50Ohms Panel Mount Bulkhead Fitting BNC Conn; jack; Solder Term Nickel

安富利:
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual

Chip1Stop:
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual

TME:

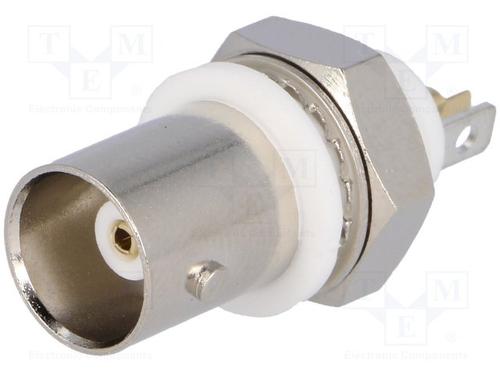

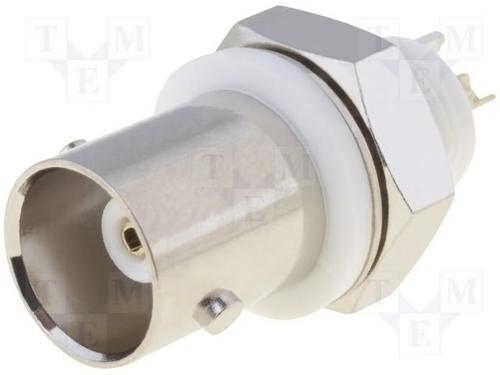

Socket; BNC; female; insulated; straight; 50Ω; soldering; polyester

Verical:
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual

MASTER:
BNC INSULATED BULKHEAD SOCKET FRONT MOUNT

Powell:
BNC RF Connectors

ICbanQ:
RF Connectors BH Skt 50Ohm Nickel Gold

Electro Sonic:
BNC Ins BHSkt 50Ohm Nickel Gold Pltd
