FZT968TA

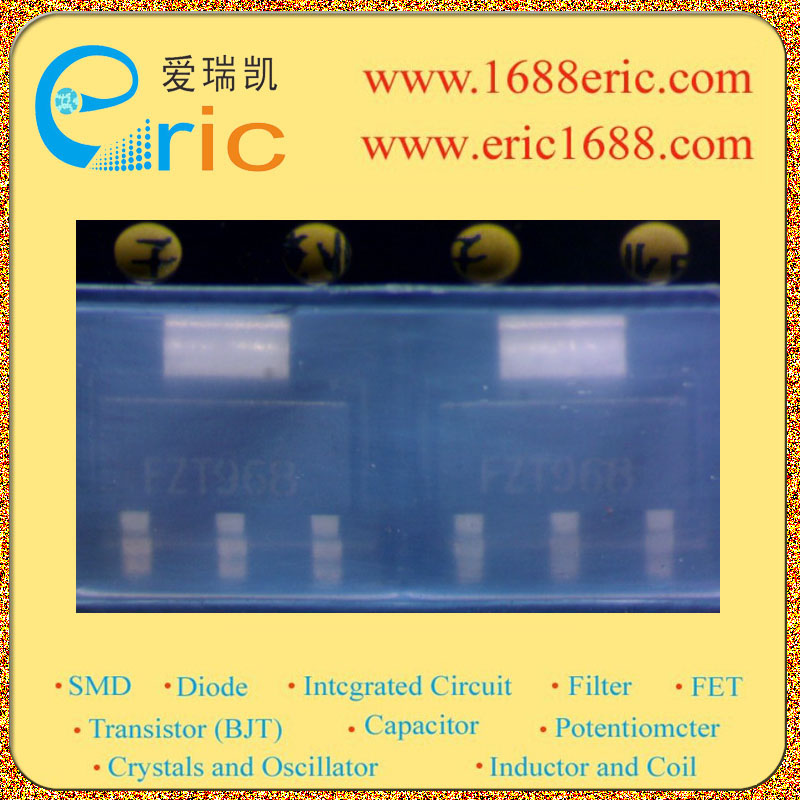

FZT968TA PNP三极管 -15V -6A 80MHz 300~1000 -450mV/-0.45V SOT-223 marking/标记 FZT968 高电流/低饱和电压

集电极-基极反向击穿电压VBRCBOCollector-Base VoltageVCBO| -15V \---|--- 集电极-发射极反向击穿电压VBRCEOCollector-Emitter VoltageVCEO| -12V 集电极连续输出电流ICCollector CurrentIC| -6A 截止频率fTTranstion FrequencyfT| 80MHz 直流电流增益hFEDC Current GainhFE| 300~1000 管压降VCE（sat）Collector-Emitter SaturationVoltage| −450mV/-0.45V 耗散功率PcPoWer Dissipation| 3W Description & Applications| PNP SILICON PLANAR HIGH CURRENT POWER TRANSISTOR FEATURES Extremely low equivalent on-resistance 6 Amps continuous current High gain and very low saturation voltage 描述与应用| PNP硅平面高电流电源晶体管 特点 极低的等效导通电阻 6安培连续电流 高增益，非常低的饱和电压
