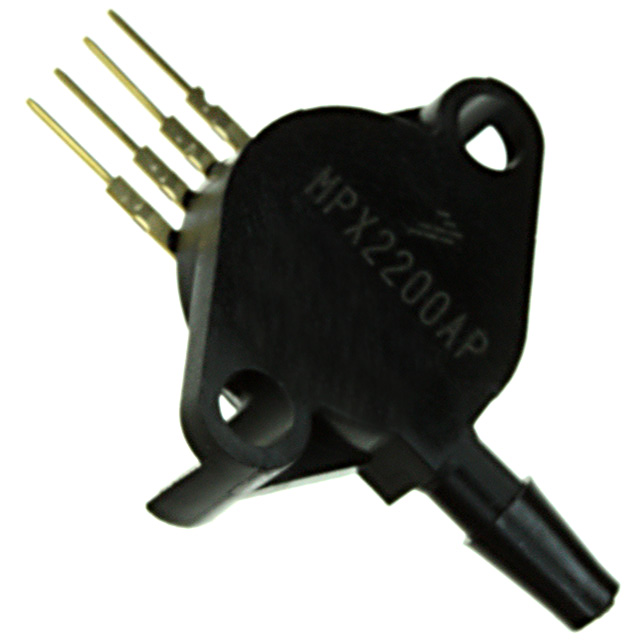

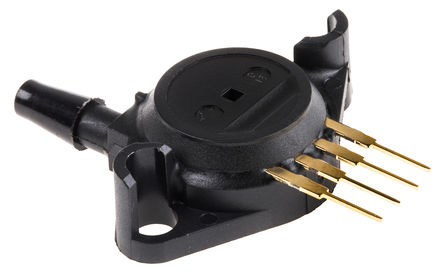

MPX2200AP

1000 kPa，Freescale高量程压力差分/量规传感器在压力施加到传感器侧（差分）和大气压力侧（校准的）时，测量来源之间的压力差异。### 压力传感器，Freescale

200 kPa On-Chip Temperature Compensated Silicon Pressure Sensors

0 to 200 kPa 0 to 29 psi 40 mV Full Scale Span Typical

The MPX2200 series devices are silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single monolithic silicon diaphragm with the strain gauge and a thin-film resistornetwork integrated on-chip.

Features

• Temperature Compensated Over 0°C to +85°C

• ±0.25% Linearity MPX2200D

• Easy-to-Use Chip Carrier Package Options

• Absolute, Differential and Gauge Options

Application Examples

• Pump/Motor Control

• Robotics

• Level Detectors

• Medical Diagnostics

• Pressure Switching

• Barometers

• Altimeters
