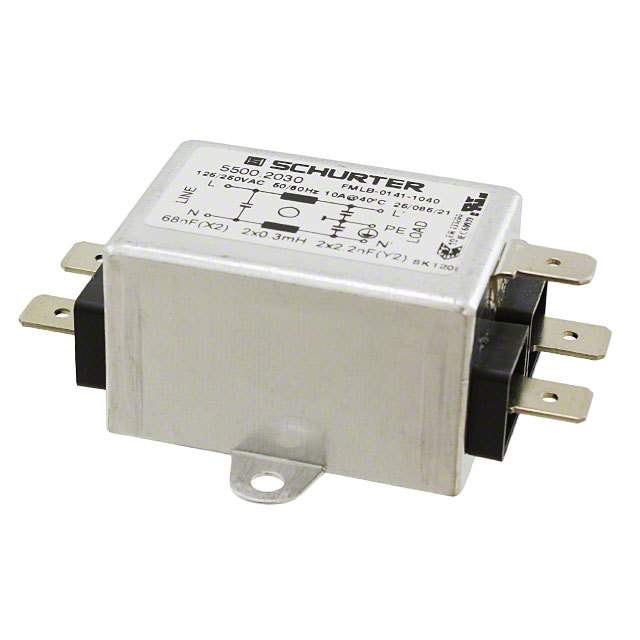

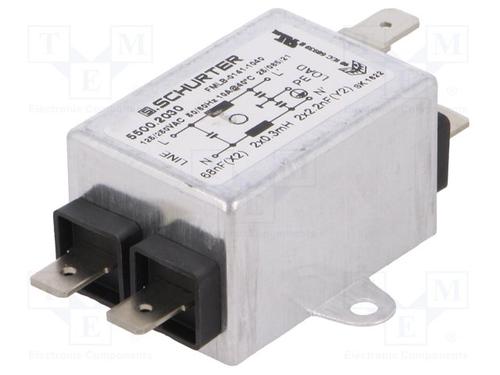

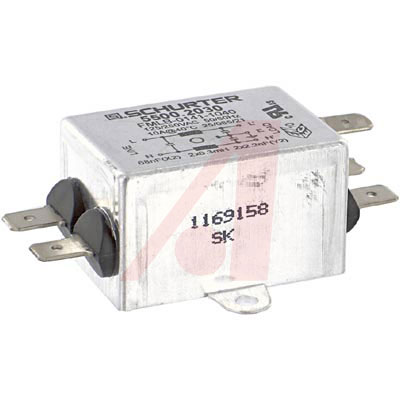

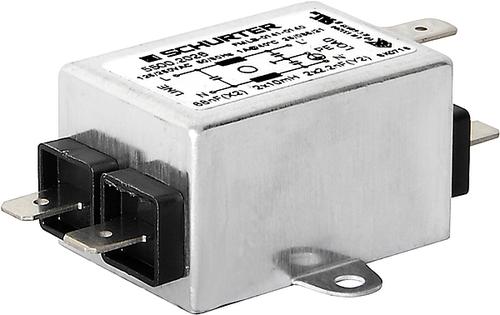

Filter, Power Line; 10A @ 40℃; 250VAC Max.; 0.25mA Max. @ 250V, 50H
**Current Rating:** 1-10 A @ 40°C. **Dimensions L × W × H:** 67 mm × 45 mm × 25 mm. Metal case.
**Features:**
* Rated Voltage: 125/250 VAC 50/60 Hz
* Attenuation: Standard
* Leakage Current: For Standard and Medical Applications
* Test Voltages: L/N — E 2.7 kVDC, 2 Sec.; L — N 1.7 kVDC, 2 Sec.
* In-Rush Current: 1.5 × IN 1 Min. Per Hour
* MTBF @ 40°C/UR Umax: >200000 H Acc. to MIL-HB-217 F
得捷:
LINE FILTER 125/250VAC 10A CHASS
欧时:
Power Line Filter 10A @ 40°C 250VAC
贸泽:
Power Line Filters 1-STAGE STD 10A FMLB
艾睿:
Power Line Filter Single Phase 50Hz/60Hz 10A 250VAC Quick Connect Flange Mount
Allied Electronics:
Filter, Power Line; 10 A @ 40 degC; 250VAC Max.; 0.25 mA Max. @ 250 V, 50 H
安富利:
FMLB-41 Filter 1PH 1ST 10A 250VAC
Chip1Stop:
Power Line Filter Single Phase 50Hz/60Hz 10A 250VAC Quick Connect Flange Mount
TME:
Filter: anti-interference; 250VAC; Cx:68nF; Cy:2.2nF; 300uH; 10A
Newark:
# SCHURTER 5500.2030 Power Line Filter, Chassis, 68000 pF, 125 VAC, 10 A, 1 Phase, Quick Connect, 2 mH
Electro Sonic:
FMLB-41 Filter 1PH 1ST 10A 250VAC
CDI:
FMLB-0141-1040
