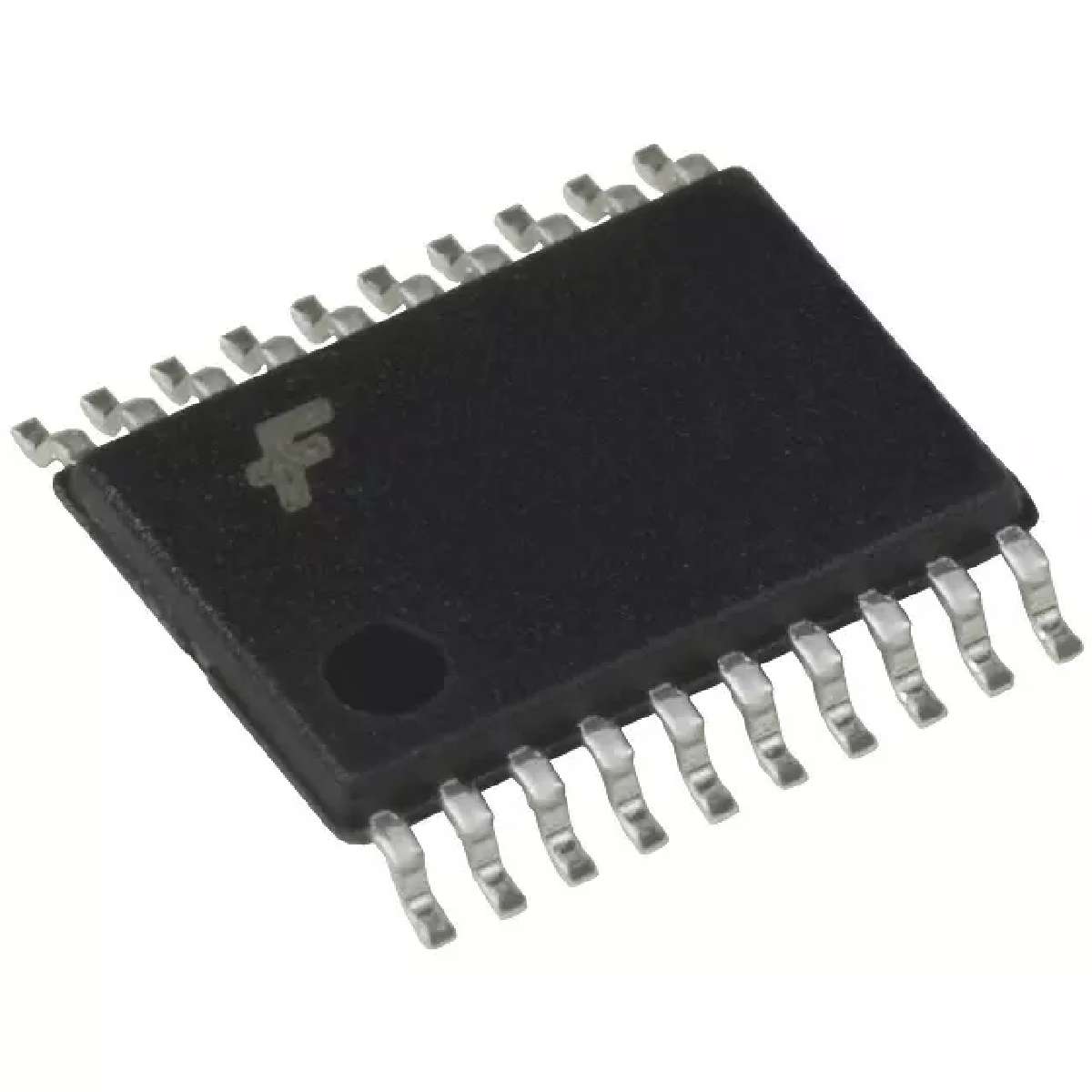

74ACT240 系列 5.5 V 八 缓冲器/线路驱动器 带 3 态输出 - TSSOP-20
Leading the input to the transmission line this buffer and line driver by Semiconductor will amplify digital and analog signals. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 85 °C. This product comes in rail packaging to keep individual parts separated and protected. It has 8 channels per chip. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
电源电压DC 5.00 V
输出接口数 8
电路数 2
通道数 8
位数 8
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20
封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Rail
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
74ACT240MTC Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
SN74ACT240PWR 德州仪器 | 功能相似 | 74ACT240MTC和SN74ACT240PWR的区别 |
SN74ACT240PW 德州仪器 | 功能相似 | 74ACT240MTC和SN74ACT240PW的区别 |
SN74ACT240DBR 德州仪器 | 功能相似 | 74ACT240MTC和SN74ACT240DBR的区别 |
