16位串行/并行-IN ,串行输出移位寄存器 16-Bit Serial/Parallel-In, Serial-Out Shift Register
General Description
The 74F676 contains 16 flip-flops with provision for synchronous parallel or serial entry and serial output. When the Mode M input is HIGH, information present on the parallel data P0–P15 inputs is entered on the falling edge of the Clock Pulse CP input signal. When M is LOW, data is shifted out of the most significant bit position while information present on the Serial SI input shifts into the least significant bit position. A HIGH signal on the Chip Select CS input prevents both parallel and serial operations.
Features
■ 16-bit parallel-to-serial conversion
■ 16-bit serial-in, serial-out
■ Chip select control

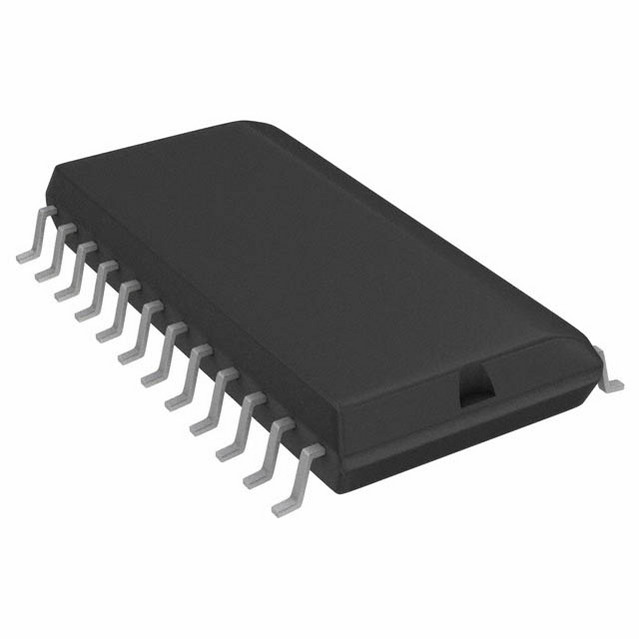

■ Slim 24 lead 300 mil package
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
74F676SC Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
74F676SCX 飞兆/仙童 | 完全替代 | 74F676SC和74F676SCX的区别 |
