NCP500SN25T1G

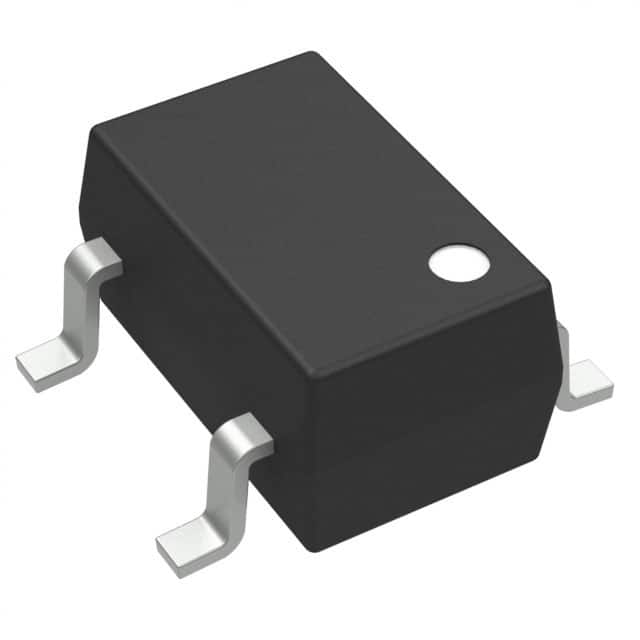

ON SEMICONDUCTOR  NCP500SN25T1G  固定电压稳压器, LDO, 1.8V至6V, 190mV压差, 2.5V输出, 150mA输出, TSOP-5

电路数量Number of Regulators| 1 \---|--- 输入电压VINVoltage - Input| 6V 输出电压VOUTVoltage - Output| 2.5V 输出电流IoCurrent - Output| 150mA/0.15A 最大压降VDOVoltage - Dropout| 270mV/0.27V 带使能脚EN/CEON/OFF功能With Enable Pin| 无 No 最大耗散功率PdPower dissipation| Description & Applications| 150 mA CMOS Low Noise Low-Dropout Voltage Regulator ;•Ultra−Low Dropout Voltage of 170 mV at 150 mA • Fast Enable Turn−On Time of 20 sec • Wide Operating Voltage Range of 1.8 V to 6.0 V • Excellent Line and Load Regulation • High Accuracy Output Voltage of 2.5% • Enable Can Be Driven Directly by 1.0 V Logic • Typical RMS Noise Voltage 50 V with No Bypass Capacitor BW = 10 Hz to 100 kHz • Very Small QFN 2x2 Package • Noise Sensitive Circuits − VCO’s, RF Stages, etc. • SMPS Post−Regulation • Hand−Held Instrumentation • Camcorders and Cameras 描述与应用| 150毫安的CMOS低噪声 低压差电压 稳压器;•在150 mA的超低压差电压为170 mV •快速启用开启时间20秒 •宽工作电压范围为1.8 V到6.0 V •出色的线路和负载调节 •高输出电压精度为2.5％ •启用，可直接驱动1.0 V逻辑 •典型RMS噪声电压50 V的无旁路电容 （BW=10赫兹到100千赫） •非常小的QFN2x2封装 •噪声敏感的电路 - VCO的RF阶段​​，等等。 •SMPS后调控 •手持式仪表 •摄像机和照相机
