NCP1013AP065

自供电单片开关器，用于低待机功耗离线SMPS Self−Supplied Monolithic Switcher for Low Standby−Power Offline SMPS

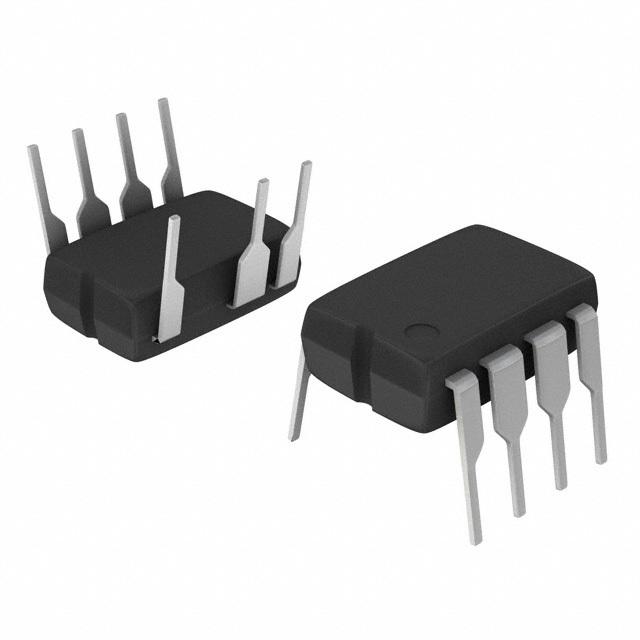

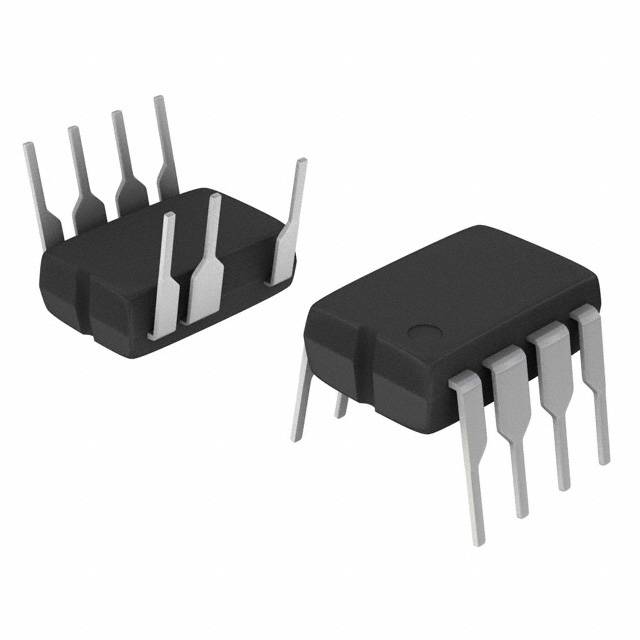

The NCP101X series integrates a fixed−frequency current−mode controller and a 700 V MOSFET. Housed in a PDIP−7, PDIP−7 Gull Wing, or SOT−223 package, the NCP101X offers everything needed to build a rugged and low−cost power supply, including soft−start, frequency jittering, short−circuit protection, skip−cycle, a maximum peak current setpoint and a Dynamic Self−Supply no need for an auxiliary winding.

Unlike other monolithic solutions, the NCP101X is quiet by nature: during nominal load operation, the part switches at one of the available frequencies 65 − 100 − 130 kHz. When the current setpoint falls below a given value, e.g. the output power demand diminishes, the IC automatically enters the so−called skip−cycle mode and provides excellent efficiency at light loads. Because this occurs at typically 1/4 of the maximum peak value, no acoustic noise takes place. As a result, standby power is reduced to the minimum without acoustic noise generation.

Features

• Built−in 700 V MOSFET with Typical RDSon of 11 Ω and 22 Ω

• Large Creepage Distance Between High−Voltage Pins

• Current−Mode Fixed Frequency Operation: 65 kHz – 100 kHz − 130 kHz

• Skip−Cycle Operation at Low Peak Currents Only: No Acoustic Noise!

• Dynamic Self−Supply, No Need for an Auxiliary Winding

• Internal 1.0 ms Soft−Start

• Latched Overvoltage Protection with Auxiliary Winding Operation

• Frequency Jittering for Better EMI Signature

• Auto−Recovery Internal Output Short−Circuit Protection

• Below 100 mW Standby Power if Auxiliary Winding is Used

• Internal Temperature Shutdown

• Direct Optocoupler Connection

• SPICE Models Available for TRANsient Analysis

.

Typical Applications

• Low Power AC/DC Adapters for Chargers

• Auxiliary Power Supplies USB, Appliances, TVs, etc.
