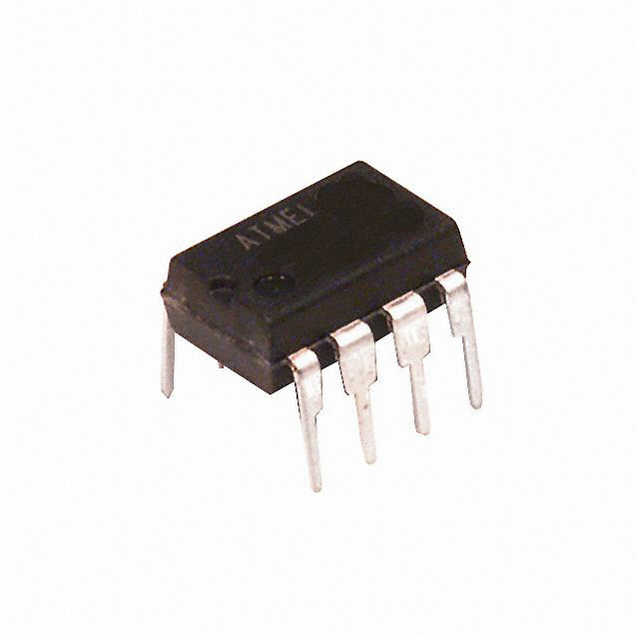

IC EEPROM 4Kbit 2MHz 8DIP
Description
The AT93C46/56/66 provides 1024/2048/4096 bits of serial electrically erasable programmable read only memory EEPROM organized as 64/128/256 words of 16 bits each, when the ORG pin is connected to VCC and 128/256/512 words of 8 bits each when it is tied to ground. The device is optimized for use in many industrial and commercial applications where low power and low voltage operations are essential. The AT93C46/56/66 is available in space-saving 8-lead PDIP and 8-lead JEDEC and EIAJ SOIC packages.
Features
• Low-voltage and Standard-voltage Operation
– 5.0 VCC = 4.5V to 5.5V
– 2.7 VCC = 2.7V to 5.5V
– 2.5 VCC = 2.5V to 5.5V
– 1.8 VCC = 1.8V to 5.5V
• User-selectable Internal Organization
– 1K: 128 x 8 or 64 x 16
– 2K: 256 x 8 or 128 x 16
– 4K: 512 x 8 or 256 x 16
• 3-wire Serial Interface
• 2 MHz Clock Rate 5V
• Self-timed Write Cycle 10 ms max
• High Reliability
– Endurance: 1 Million Write Cycles
– Data Retention: 100 Years
• Automotive Grade and Extended Temperature Devices Available
• 8-lead PDIP, 8-lead JEDEC and EIAJ SOIC, and 8-lead TSSOP Packages
