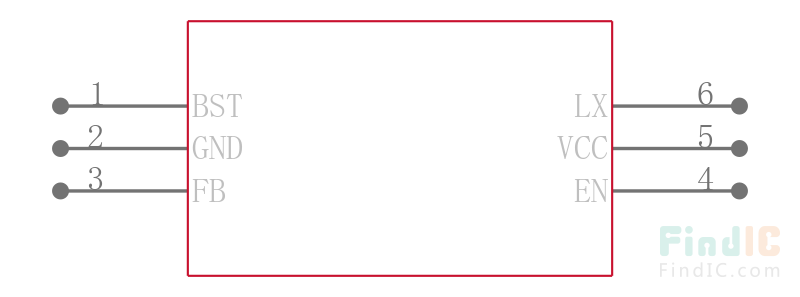

BD9G102G-LBTR

DC/DC降压稳压器, 可调, 6V至42V输入, 750mV至33.6V/500mA输出, 1MHz, SSOP-6

The BD9G102G-LB is a 42V, 0.5A non-synchronous buck converter with integrated internal high-side 42V Power MOSFET. Operating frequency is 1.0MHz fixed by inner circuit. The components of phase compensation are built in. Additional protection features are included such as Over Current Protection, Thermal Shutdown and Under Voltage Lockout.

.

Long Time Support Product for Industrial Applications

.

Wide Operating Input Range 6V to 42V

.

45V/800mOhm Internal Power MOSFET

.

1.0MHz Fixed Operating Frequency

.

Feedback Pin Voltage 0.75V ± 2.0%

.

Accurate EN Threshold 1.8V ± 0.1V

.

Current Mode

.

Internal Compensation

.

Cycle-by-Cycle Over Current ProtectionOCP

.

Under Voltage Locked OutUVLO, Over Voltage ProtectionOVP, Thermal Shut DownTSD

.

0µA Low Shutdown Supply Current
