TEXAS INSTRUMENTS CD4543BMT 逻辑芯片, 译码器/驱动器/锁存器, BCD-7段, SOIC-16
Make a design versatile and well-rounded by adding extra complexity with this from Texas Instruments. This decoder has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.
电源电压DC 3.00V min
输出接口数 7
供电电流 40 nA
针脚数 16
位数 7
电压波节 5.00 V, 10.0 V, 15.0 V
带宽 8.00 MHz
输入数 4
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16

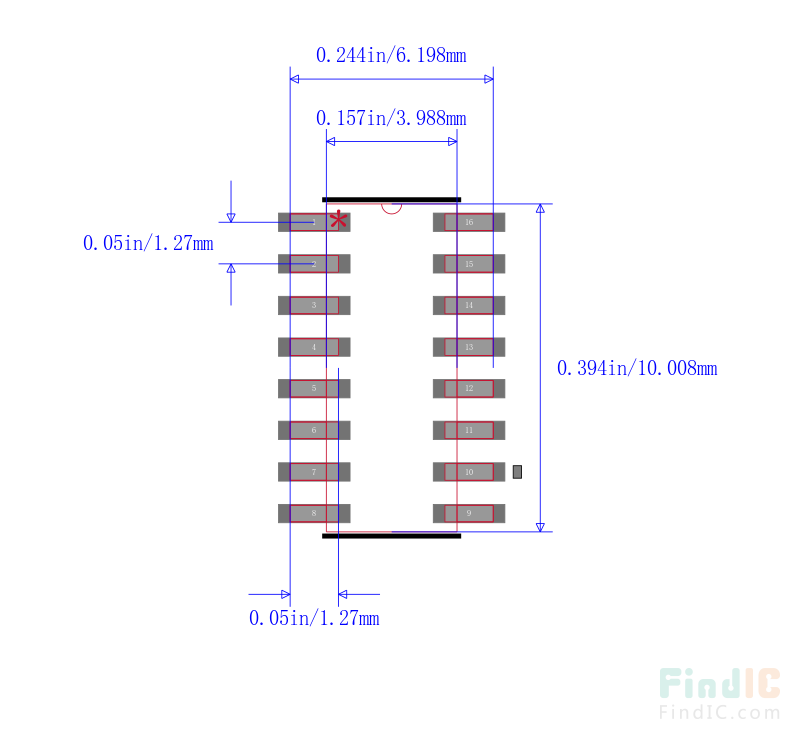

封装 SOIC-16
高度 1.5 mm
封装 SOIC-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD4543BMT TI 德州仪器 | 当前型号 | 当前型号 |
CD4543BM 德州仪器 | 完全替代 | CD4543BMT和CD4543BM的区别 |
CD4543BM96 德州仪器 | 类似代替 | CD4543BMT和CD4543BM96的区别 |
CD4543BM96G4 德州仪器 | 类似代替 | CD4543BMT和CD4543BM96G4的区别 |
