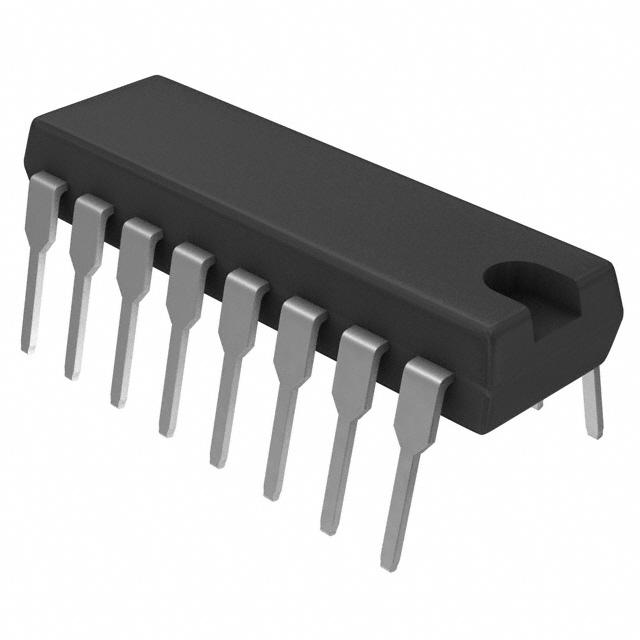

CD74AC112EE4图片1
CD74AC112EE4图片2
CD74AC112EE4图片3
CD74AC112EE4图片4
CD74AC112EE4图片5
CD74AC112EE4图片6
CD74AC112EE4图片7
CD74AC112EE4概述

双JK负边沿触发触发器具有清零和预设 DUAL J-K NEGATIVE-EDGE-TRIGGERED FLIP-FLOPS WITH CLEAR AND PRESET

description/ordering information

The ’AC112 devices contain two independent J-K negative-edge-triggered flip-flops. A low level at the preset PRE or clear CLR inputs sets or resets the outputs, regardless of the levels of the other inputs. When PRE and CLR are inactive high, data at the J and K inputs meeting the setup-time requirements is transferred to the outputs on the negative-going edge of the clock pulse CLK.

AC Types Feature 1.5-V to 5.5-V Operation and Balanced Noise Immunity at 30% of the Supply Voltage

Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption

Balanced Propagation Delays

±24-mA Output Drive Current

   – Fanout to 15 F Devices

SCR-Latchup-Resistant CMOS Process and Circuit Design

Exceeds 2-kV ESD Protection Per MIL-STD-883, Method 3015

CD74AC112EE4中文资料参数规格
技术参数

频率 100 MHz

输出接口数 1

输出电流 24.0 mA

电路数 2

通道数 2

时钟频率 100 MHz

位数 2

输入电容 10 pF

输入数 2

工作温度Max 125 ℃

工作温度Min -55 ℃

电源电压 1.5V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 1.5 V

封装参数

安装方式 Through Hole

引脚数 16

封装 PDIP-16

外形尺寸

长度 19.3 mm

宽度 6.35 mm

高度 4.57 mm

封装 PDIP-16

物理参数

工作温度 -55℃ ~ 125℃ TA

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CD74AC112EE4引脚图与封装图
CD74AC112EE4引脚图
CD74AC112EE4封装图
CD74AC112EE4封装焊盘图
在线购买CD74AC112EE4
型号: CD74AC112EE4
制造商: TI 德州仪器
描述:双JK负边沿触发触发器具有清零和预设 DUAL J-K NEGATIVE-EDGE-TRIGGERED FLIP-FLOPS WITH CLEAR AND PRESET
