8位寄存器 8-Bit Registers
Store state information for later use by using the Texas Instruments flip flop device. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V. It has 8 channels per chip.
频率 250 MHz
电源电压DC 5.25V max
输出接口数 8
输出电流 64.0 mA
时钟频率 250 MHz
位数 8
极性 Non-Inverting
电压波节 5.00 V
输入电容 5 pF
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.75V ~ 5.25V
安装方式 Surface Mount
引脚数 20

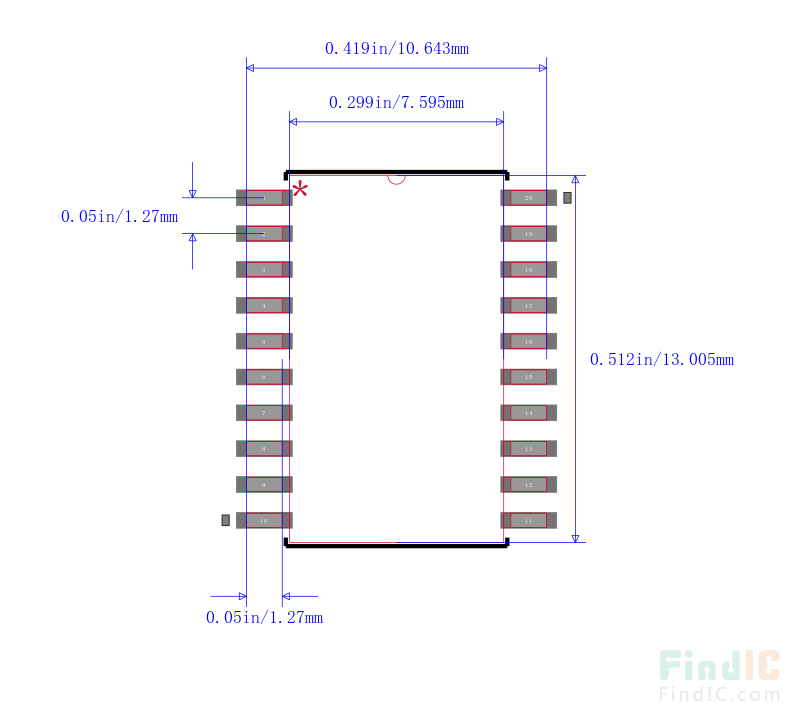

封装 SOIC-20
封装 SOIC-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CY74FCT374CTSOC TI 德州仪器 | 当前型号 | 当前型号 |
CY74FCT374CTSOCTE4 德州仪器 | 完全替代 | CY74FCT374CTSOC和CY74FCT374CTSOCTE4的区别 |
CY74FCT374TSOC 德州仪器 | 类似代替 | CY74FCT374CTSOC和CY74FCT374TSOC的区别 |
CY74FCT374ATSOC 德州仪器 | 类似代替 | CY74FCT374CTSOC和CY74FCT374ATSOC的区别 |
