50ZLH120MEFC8X16

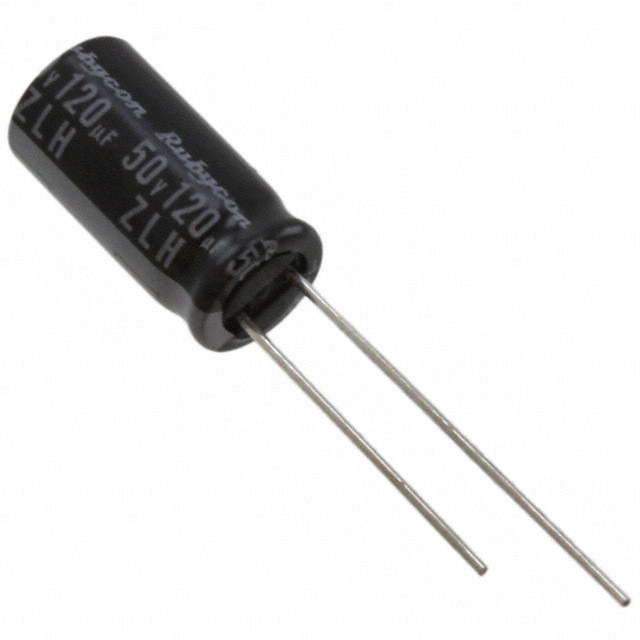

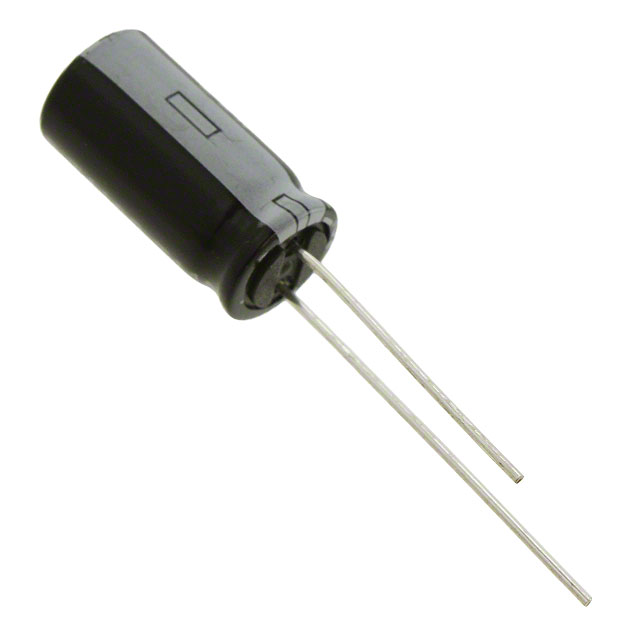

RUBYCON  50ZLH120MEFC8X16  铝电解电容, 微型, ZLH系列, 120 µF, ± 20%, 50 V, 8 mm, 径向引线

The ZLH series is miniaturized, long life and low impedance aluminium electrolytic capacitors. These capacitors are used in audio, video and general purpose electronic circuits.

.

Capacitance value ranging from 8.2µF to 8200µF

.

Tolerance of ±20%

.

Rated voltage of 6.3V to 100VDC

.

Operating temperature of -40°C to +105°C

.

High ripple current

.

Endurance at 105°C of 6000hours to 10000hours depending on case size diameter

.

Capacitor size varies from 5 × 11mm to 18 × 40mm
