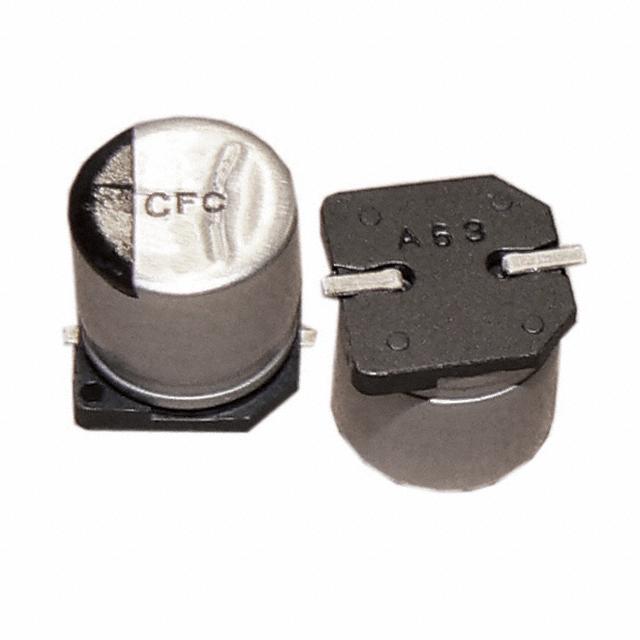

AFC226M16C12T

Cap Aluminum Lytic 22uF 16V 20% 5 X 5.4mm SMD 12.1Ω 95mA 1000H 105

Type AFC Capacitors are the choice for high-frequency filtering. At 100 kHz, most ratings can handle more than twice the ripple current of type AHA. With solid performance at temperatures down to –55 ° C, Type AFC has more than 90% capacitance retention at –20 ° C and 1 kHz. With low impedance to beyond 100 kHz, it is ideal for higher power DC/DC converters. The vertical cylindrical cases make for easy automatic mounting and reflow soldering, and offer big savings and higher capacitance compared to tantalum capacitors.

Highlights

• +105°C, Up to 1000 Hour Load Life

• Capacitance Range: 1 µF to 1500 µF

• Voltage Range: 6.3 Vdc to 50 Vdc
