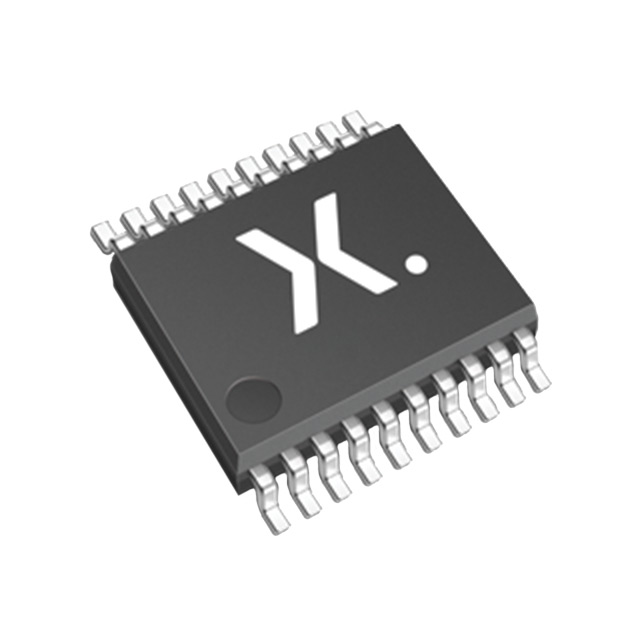

74HC273PW,118

74HC273PW,118 编带

The 74HC273PW is an octal positive-edge triggered D-type Flip-flop features clock and master reset MR\\ inputs. The outputs Qn will assume the state of their corresponding Dn inputs that meet the set-up and hold time requirements on the low-to-high clock transition. A low on MR\ forces the outputs low independently of clock and data inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

.

Common clock and master reset

.

CMOS Input levels

.

Complies with JEDEC standard No. 7A
