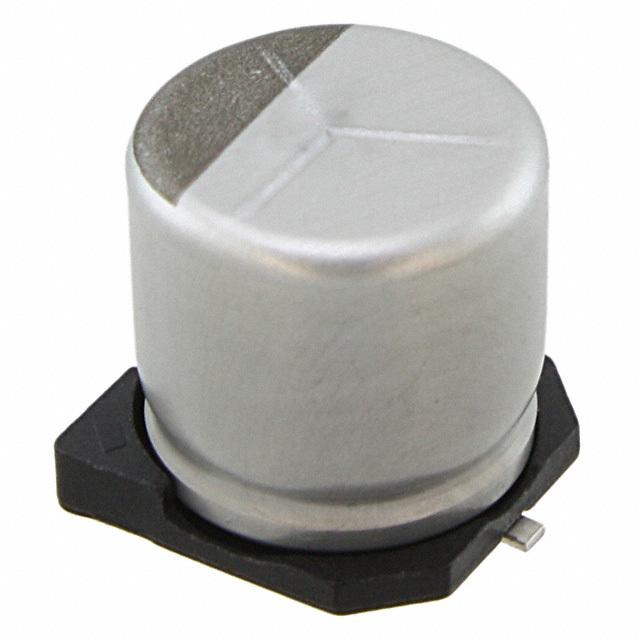

UNITED CHEMI-CON HHXB630ARA560MJA0G 铝电解电容, 聚合物, 56UF, 63V, 20%, SMD
If you require a component that can control the power coming into your integrated circuit, then the polymer capacitor from United Chemi-con is for you. It can withstand a voltage of 63 VDC. It has 2 terminals. Its leakage current is 35.28@2Min μA. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. This product is 10 mm tall with a diameter of 10 mm. It has a tolerance of 20%.
额定电压DC 63.0 V
电容 56 µF
等效串联电阻ESR 30 mΩ
容差 ±20 %
纹波电流 1800 mA
纹波电流低频 1.8A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 63 V
安装方式 Surface Mount
封装 SMD
高度 10 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命（小时） 10000h @105℃
制造应用 汽车级, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
