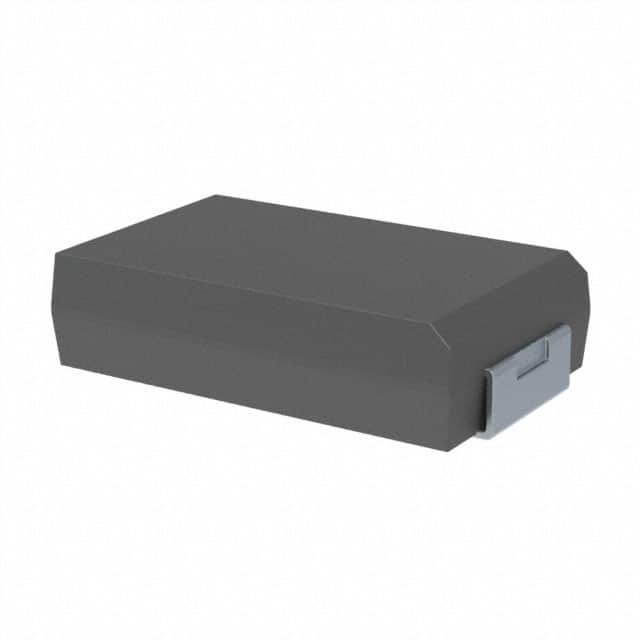

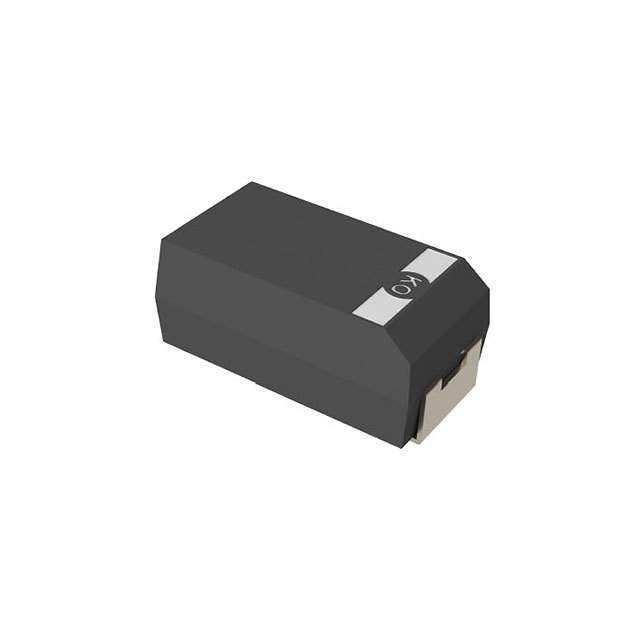

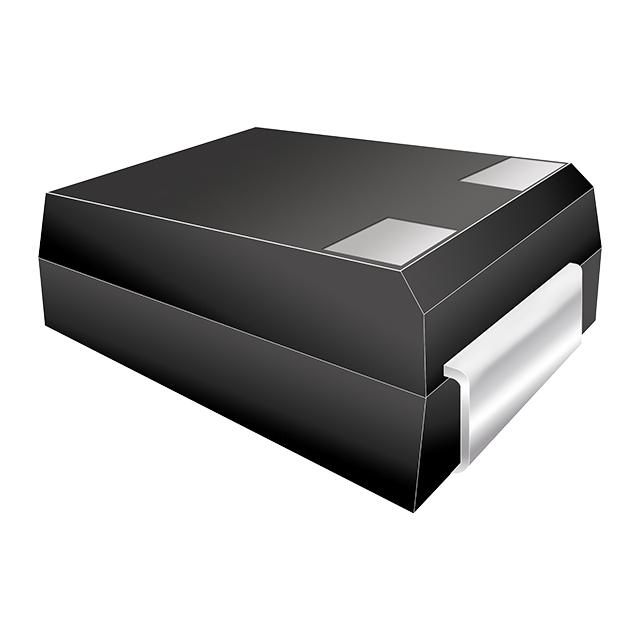

KEMET T520V107M006ATE045 表面贴装钽电容, T520系列, 100 µF, 2917 [7343 公制], 0.045 ohm, 6.3 V
Designing a small device that needs to filter out high frequencies? This polymer electrolyte from Kemet will do just that, due to its high dielectric permittivity. It can withstand a voltage of 6.3 VDC. It has 2 terminals. Its leakage current is 63 μA. Its capacitance value is 100uF. This product is 7.3 mm long, 2Max mm tall and 4.3 mm deep. This polymer electrolyte has an operating temperature range of -55 °C to 105 °C.
额定电压DC 6.30 V
电容 100 µF
等效串联电阻ESR 0.045 Ω
容差 ±20 %
产品系列 T520
纹波电流 2000 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Surface Mount
引脚数 2
封装 7343

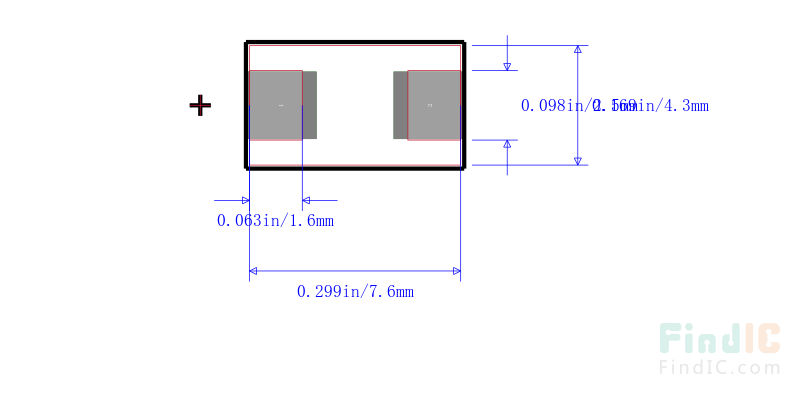

长度 7.3 mm
宽度 4.3 mm
高度 1.8 mm
封装 7343
介质材料 Tantalum
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
寿命（小时） 2000h @105℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T520V107M006ATE045 KEMET Corporation 基美 | 当前型号 | 当前型号 |
B45294R1107M409 基美 | 完全替代 | T520V107M006ATE045和B45294R1107M409的区别 |
T520V107M006AHE045 基美 | 完全替代 | T520V107M006ATE045和T520V107M006AHE045的区别 |
T520V107M010ATE025 基美 | 类似代替 | T520V107M006ATE045和T520V107M010ATE025的区别 |
